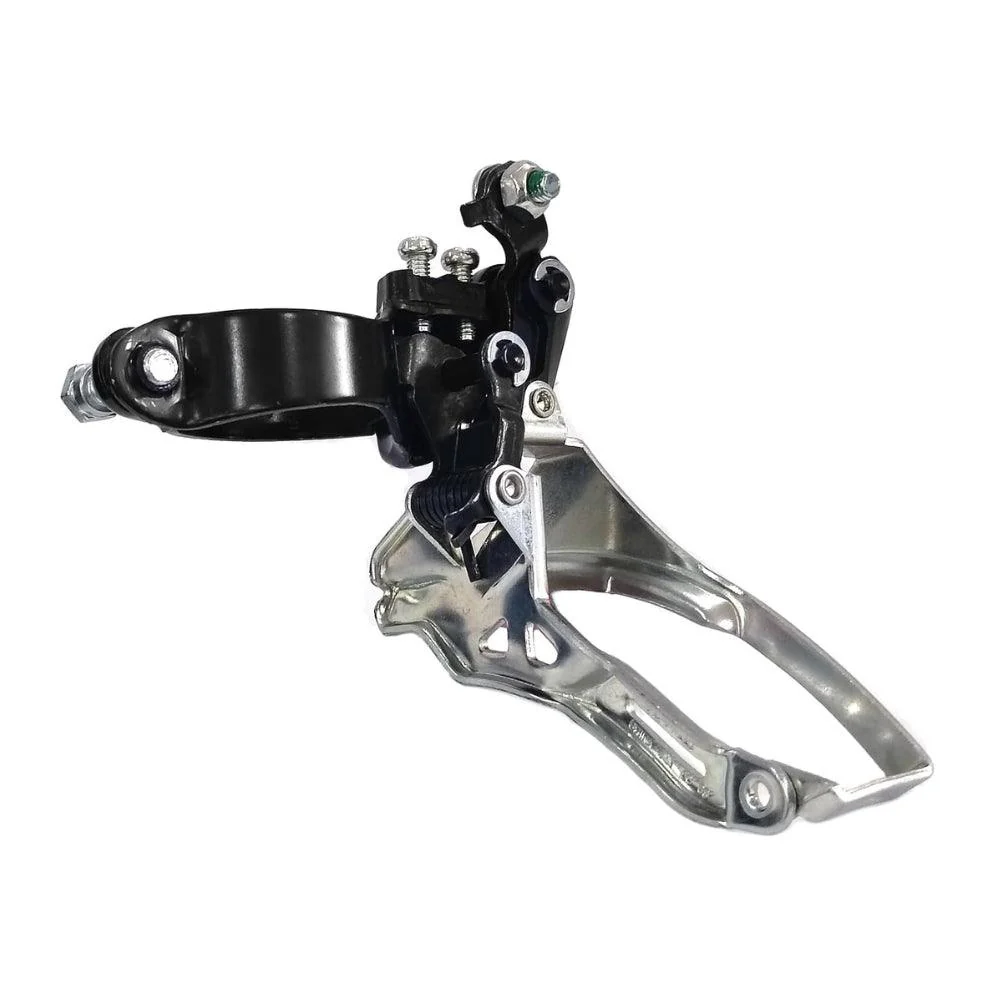

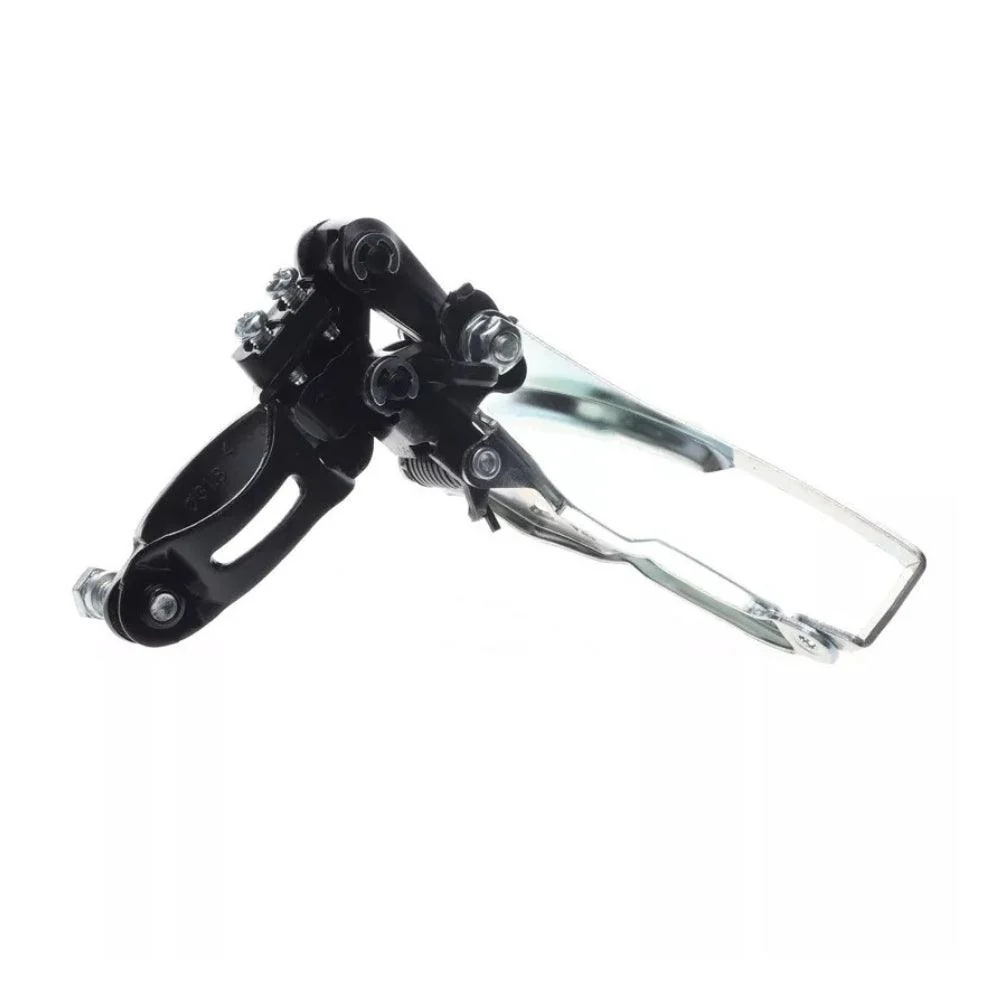

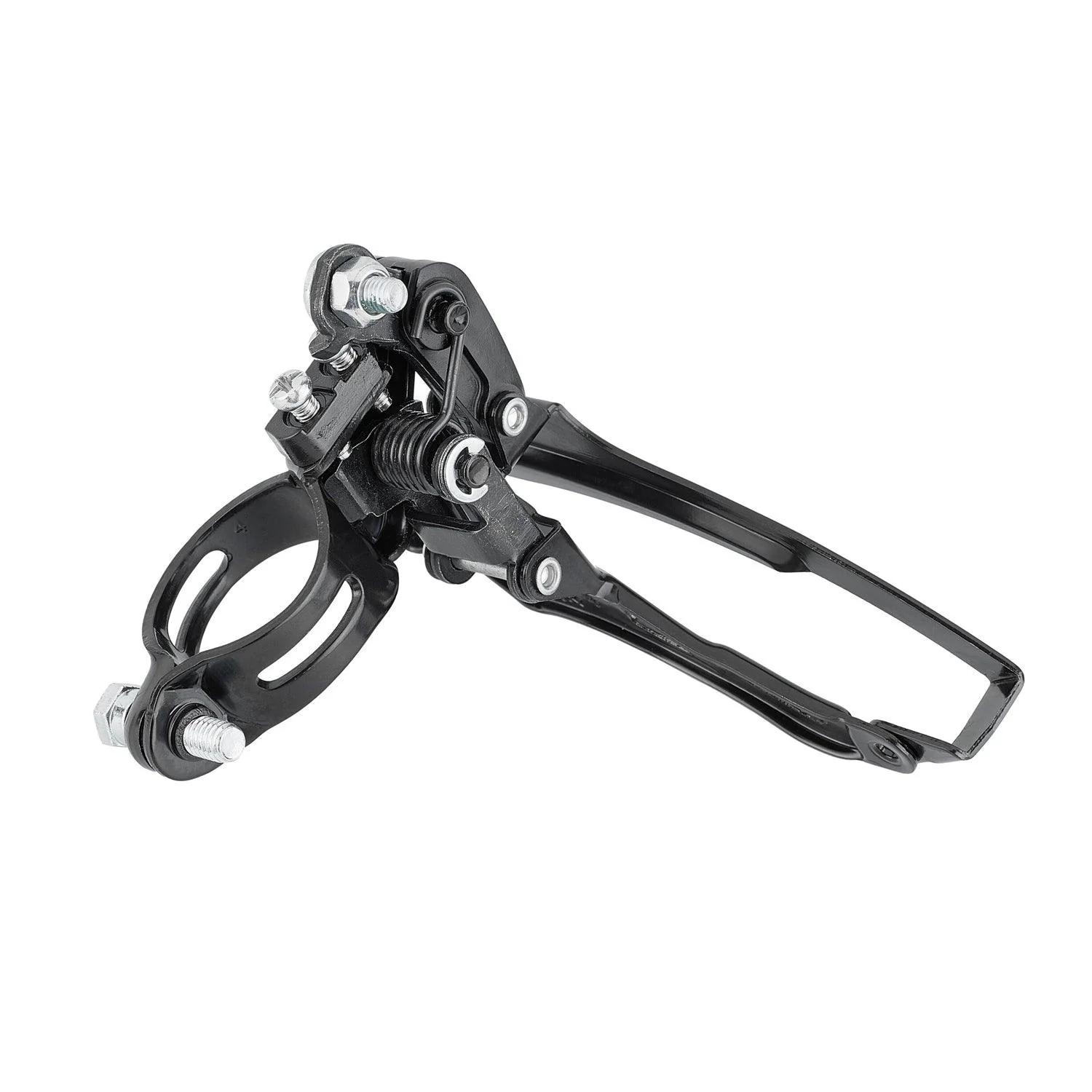

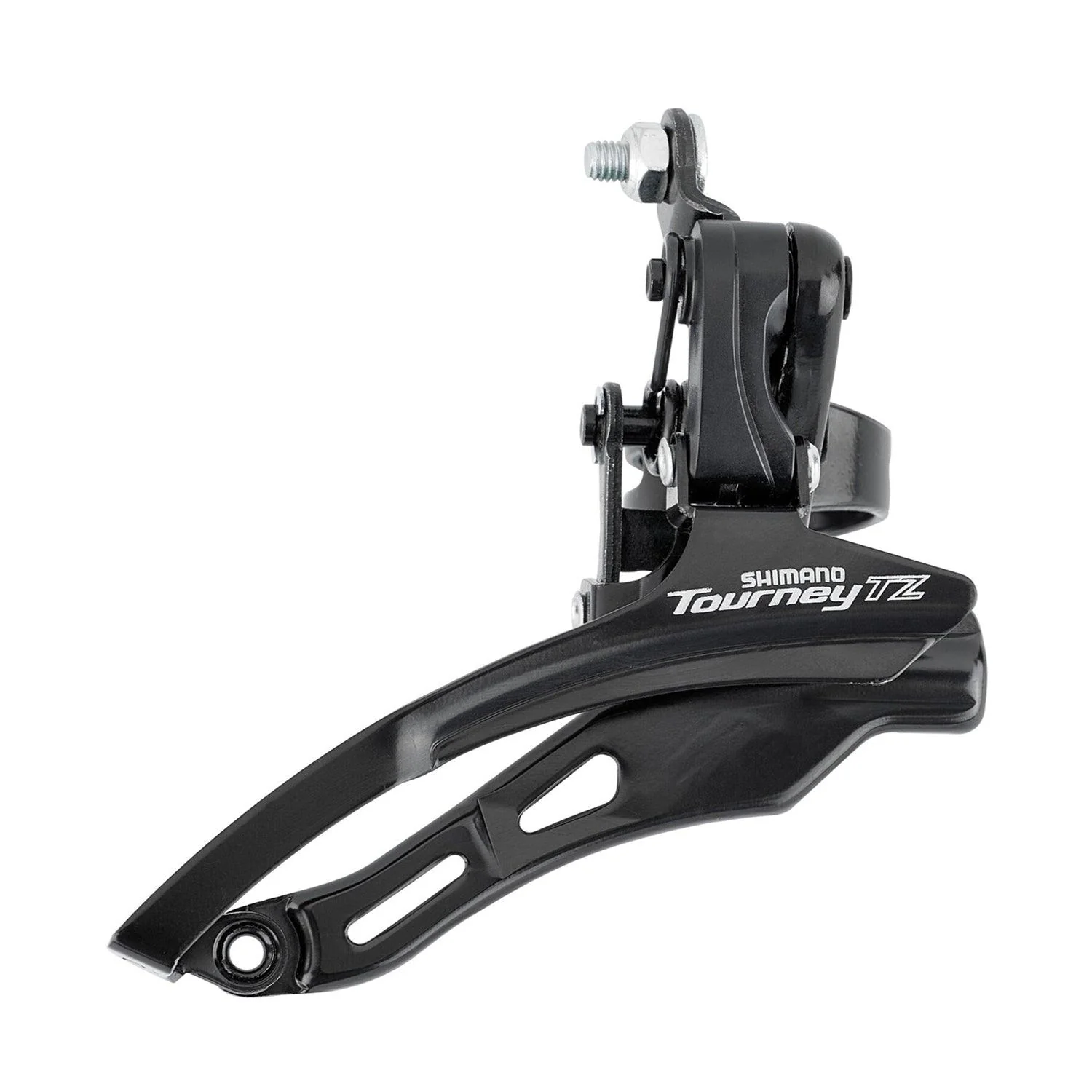

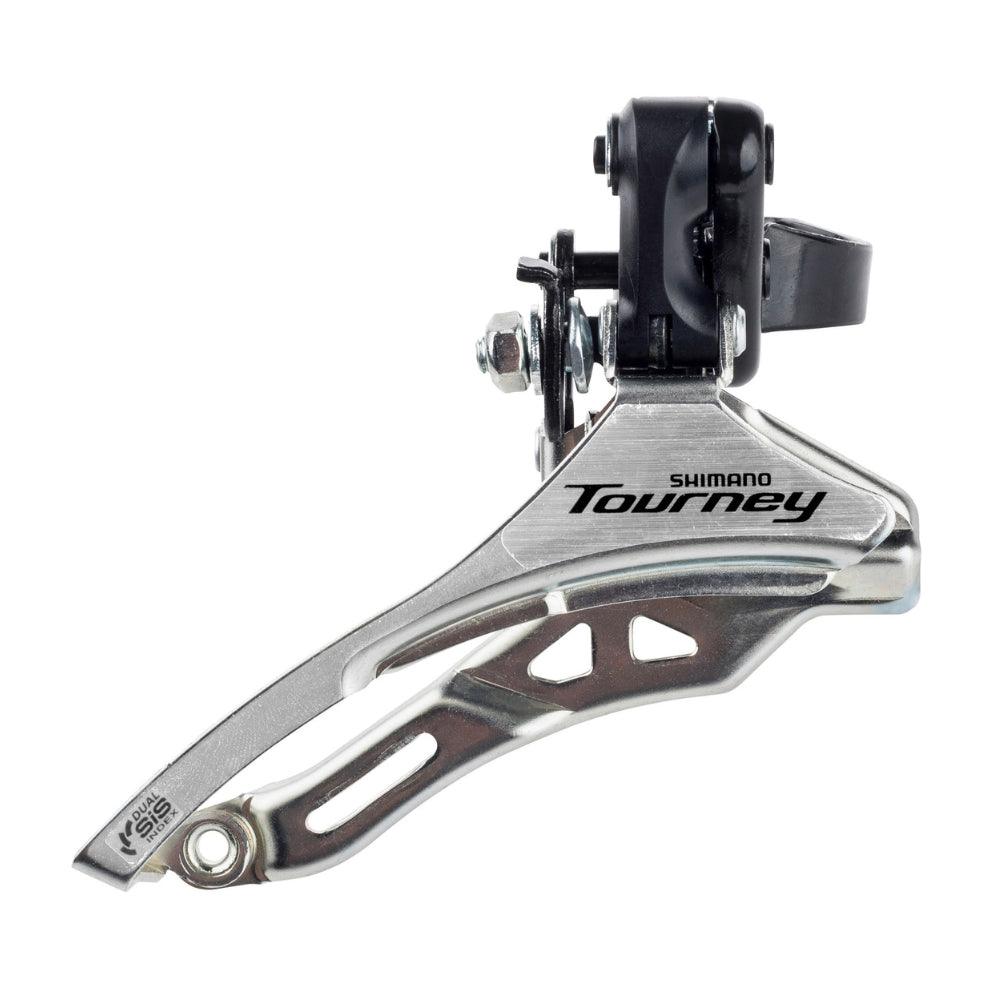

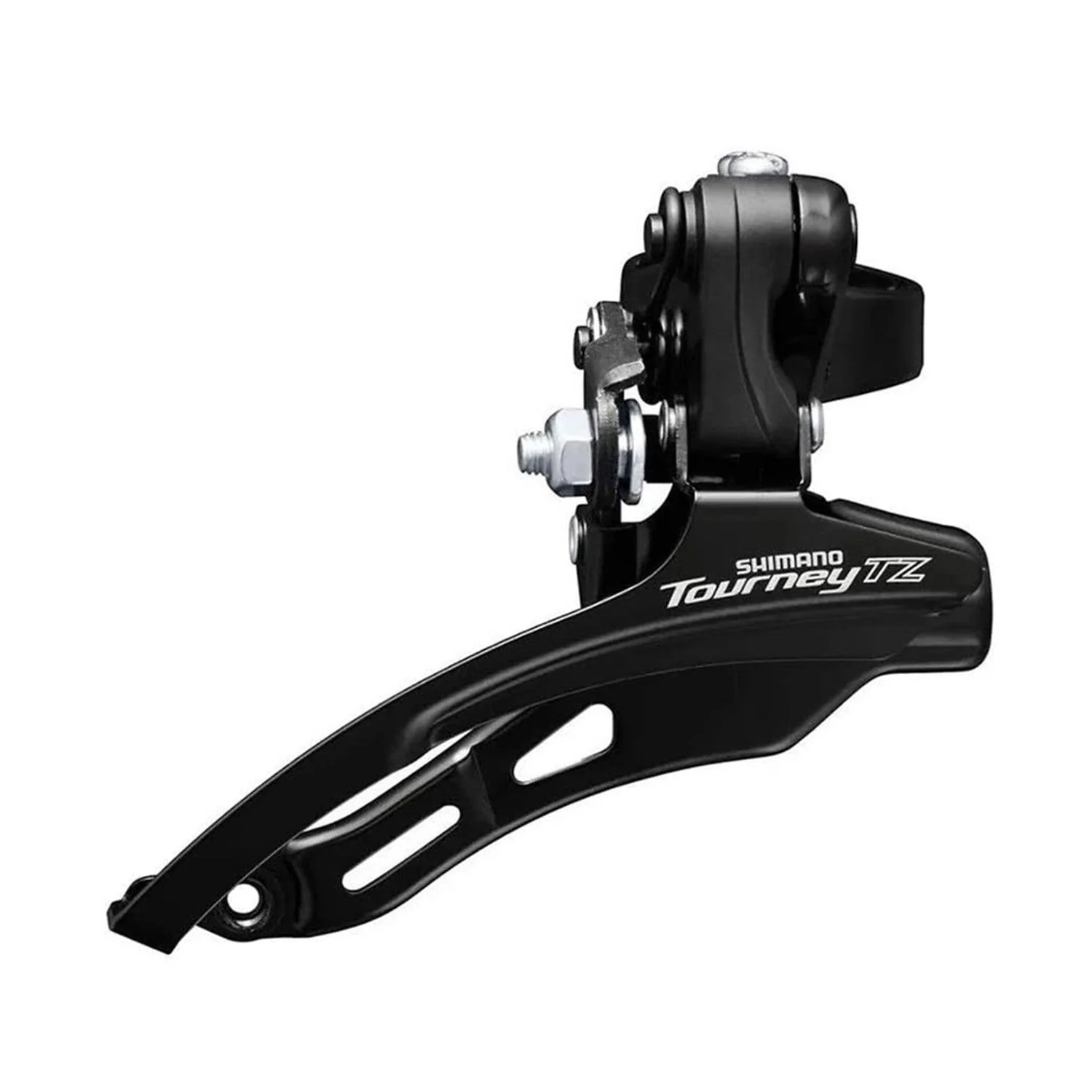

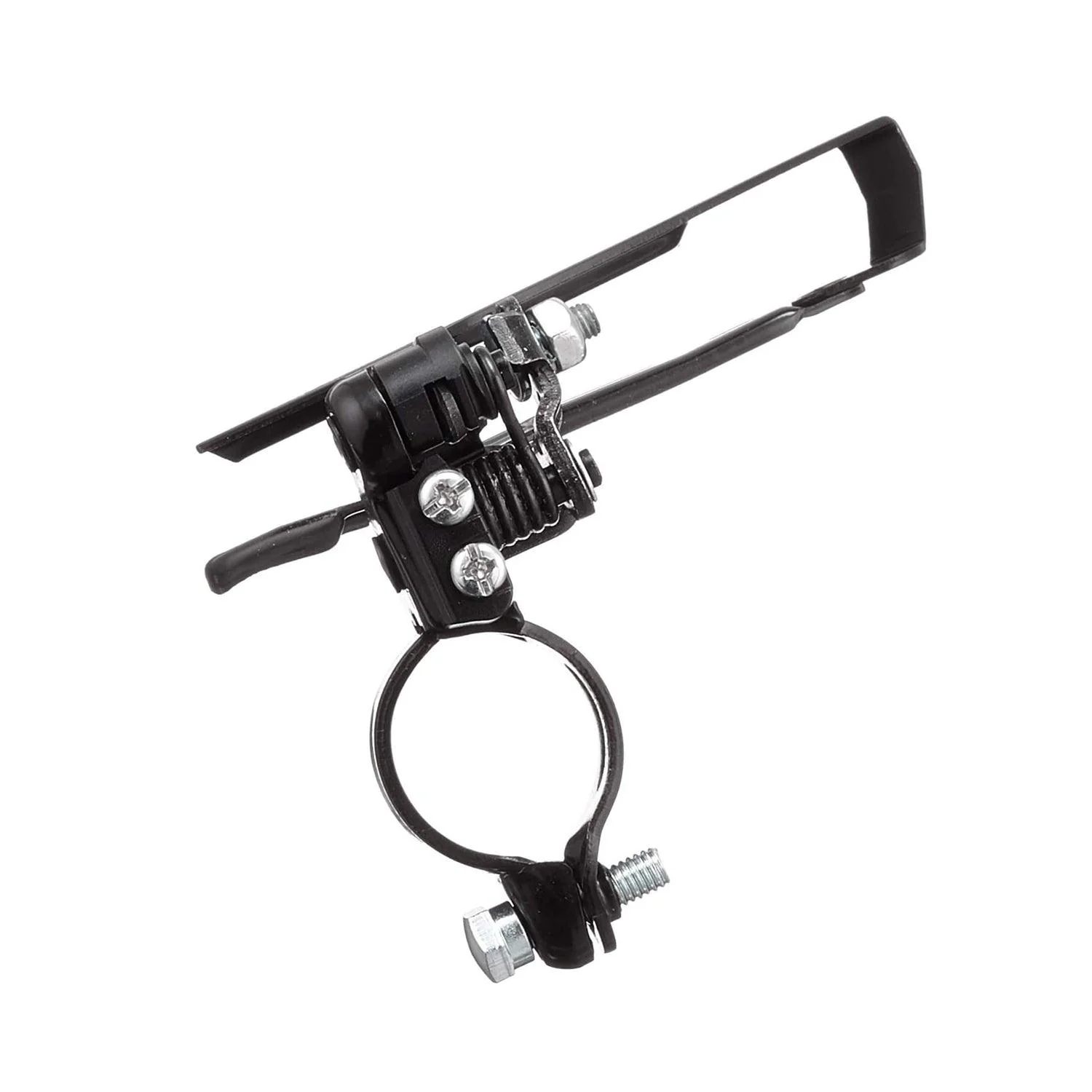

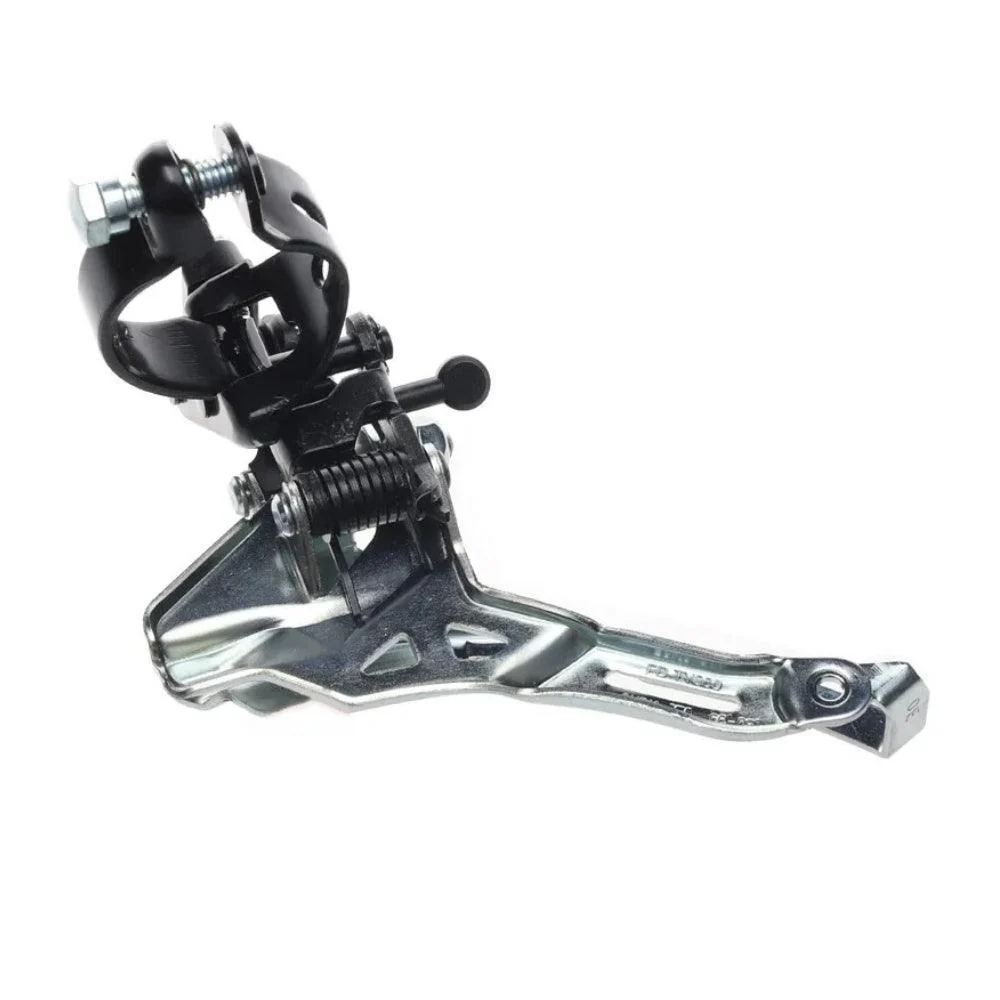

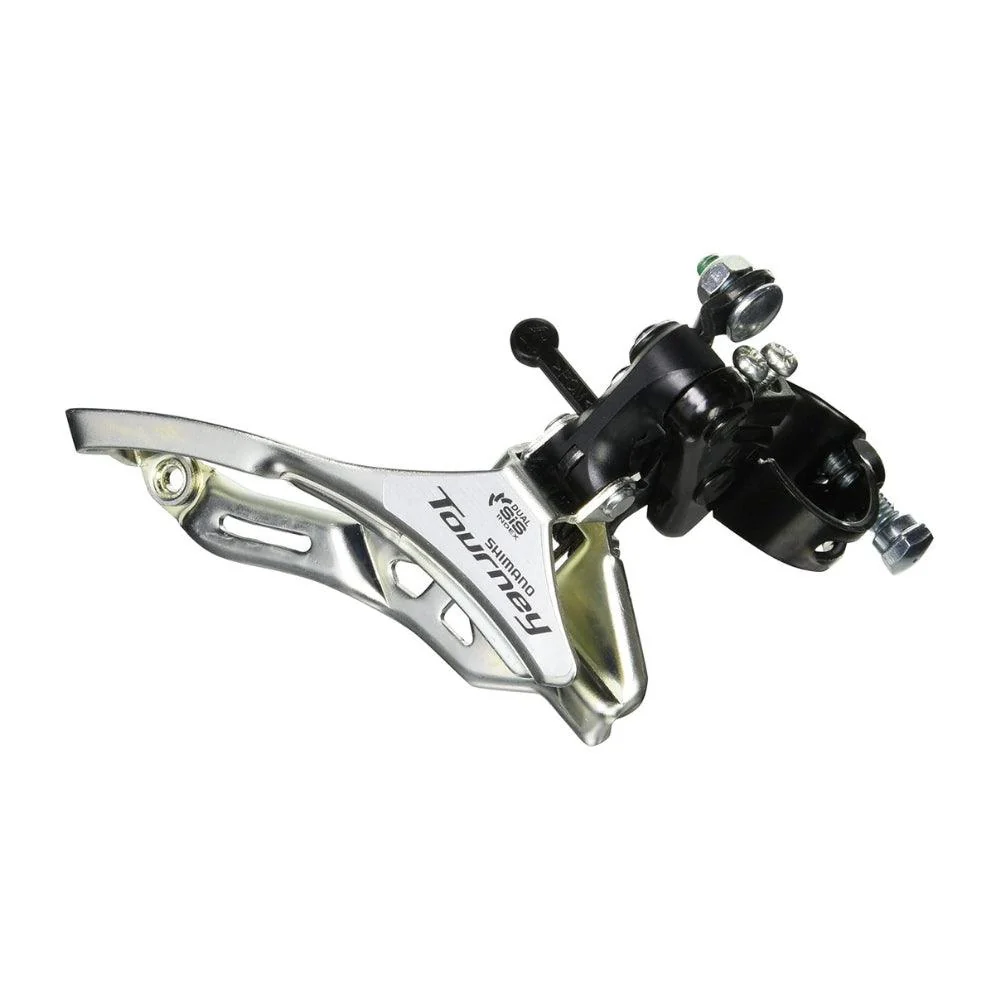

VIVI Electric Bike Derailleur Front Derailleurs
Purchase Notes
-
Before purchasing, please confirm the item label information on the upper and lower tubes or frames of your electric bike. If you purchased between 2021 and 2023, or if the model number on the frame label begins with "SPA~" (e.g., SPA000047, SPA000113, SPA000211), or if the model number on the frame label reads "M026TGB, MT20, Gopina V1, etc.", please select the SPA series frame series. If you purchased after 2024, or if the model number on the frame label begins with "AMAK~" (e.g., AMAK00016, AMAK00020, AMAK00028), or if the model number on the frame label reads "C26 UL, F26FUL, ACE01, APSVI11, GWLVI11, etc.", please select the AMAK series frame series. E-bike parts for these two frame series are incompatible, so please avoid purchasing the wrong parts.
- Please confirm the model of your electric bike before purchasing. The electric bike models shown in the details are the models currently on sale. If you cannot find the model you want, please contact our customer service email and purchase under their guidance to avoid purchasing errors. Due to different production batches and models, the item may differ from the description on this page. Please purchase according to the model on the page. The actual item received shall prevail.
Product Details
| Color | Black/Silver |
| Model | FD-TY300-DS6 / FD-TZ500-DS6 |
| Brand | Shimano |
| Groupset | Tourney |
| Material | Aluminum / Alloy Steel / Resin |
| Type | Bike Front Derailleur |
| Mounting Type | Clamp-On Mount |
| Part number | AFDTY300DSTM6 / AFDTY300DSDM6 / AFDTZ500DSDS6 |
| Front speeds | 3 (friction) |
| Rear speeds | 7/6 |
| Compatible chain | HG 8/7/6-speed |
| Action | Down swing |
| Installation diameter | Clamp band 28.6mm-31.8mm |
| Clamp Diameter | 31.8mm (TY300) / 28.6mm (TZ500) |
| Cable route type | Down-pull exclusive |
| Chain line | 47.5mm |
| Chainstay angle | 66-69 deg. |
| Top gear teeth | 42T |
| Total capacity | 18T |
| Tooth difference | 8T |
| Weight | 0.5kg/1.1lbs |
| Packing size | 20*14*10.5cm/7.8*5.5*4.1inches |
| Quantity | 1Pc |
Main Features
- Made of high strength aluminum alloy material, strong and durable, lightweight design.
- Front derailleur is compatible with 3x7/6 speed drivetrains and 42-34-22T chainrings.
- Double SIS positioning, 47.5-50mm chain center line compatible.
- With wide chain design, high variable speed response.
- Low-friction shifting Compatible with 7/6-speed drivetrains.
- Down swing (conventional) design is light action and compatible.
- For use on MTB style bikes with 66 to 69 degree seat tube to chain stay angle.
- Developed to work with 42 tooth outer chaining.
- Pre-assembled inner cable fixing nut, easy assembly.
- Smooth, light and reliable shifting performance.
Packing Contents
- 1 x Bike Front Derailleur
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. Thank you.
