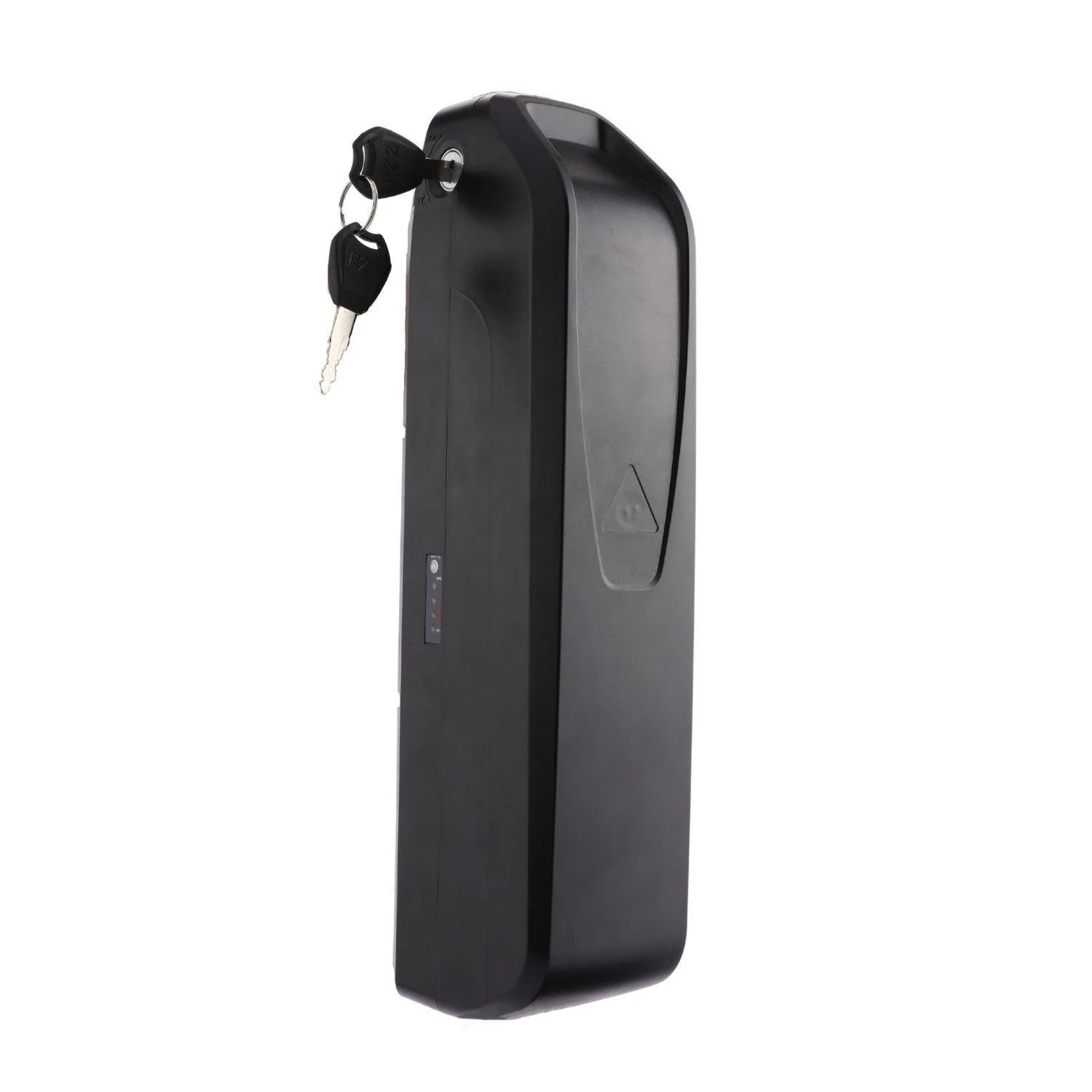

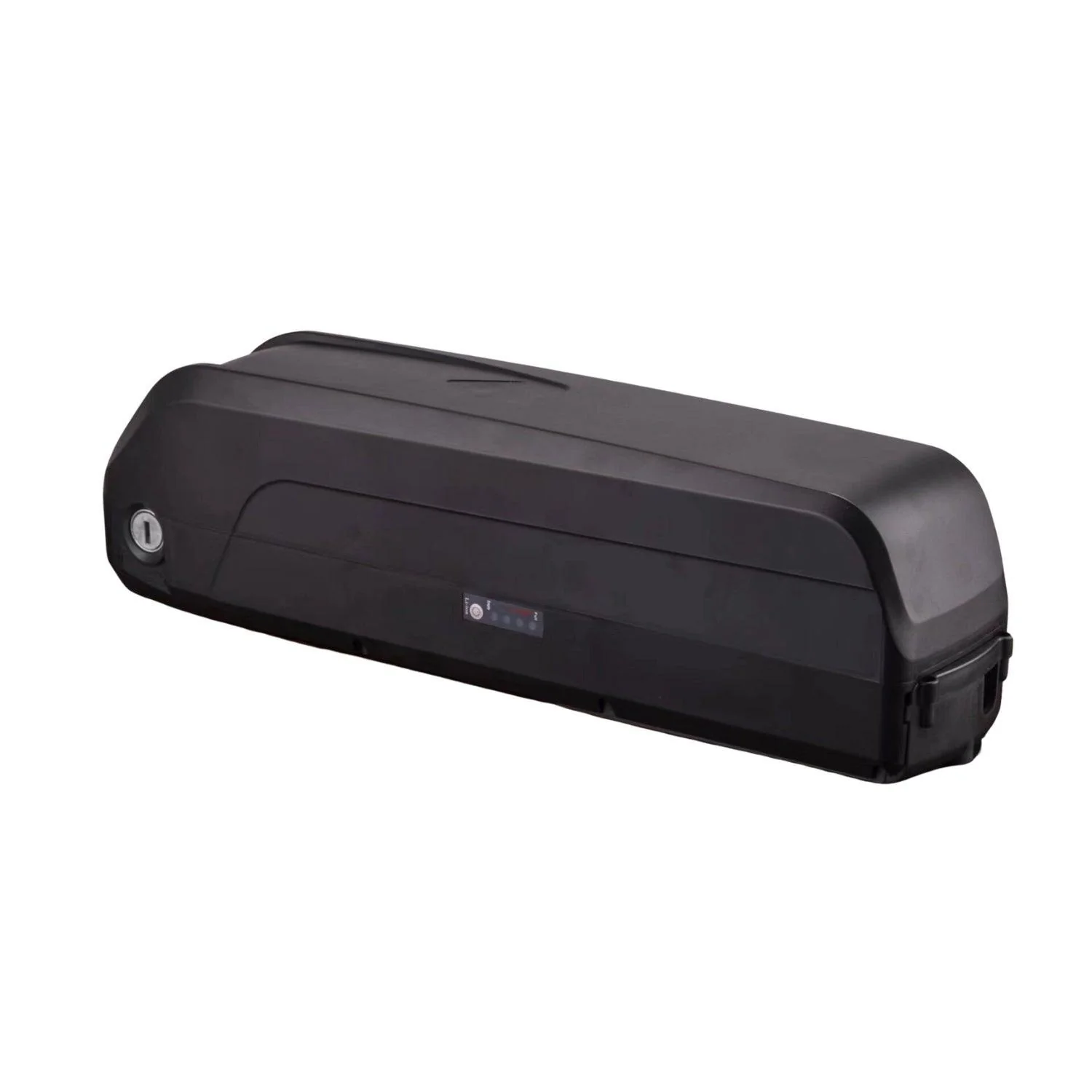

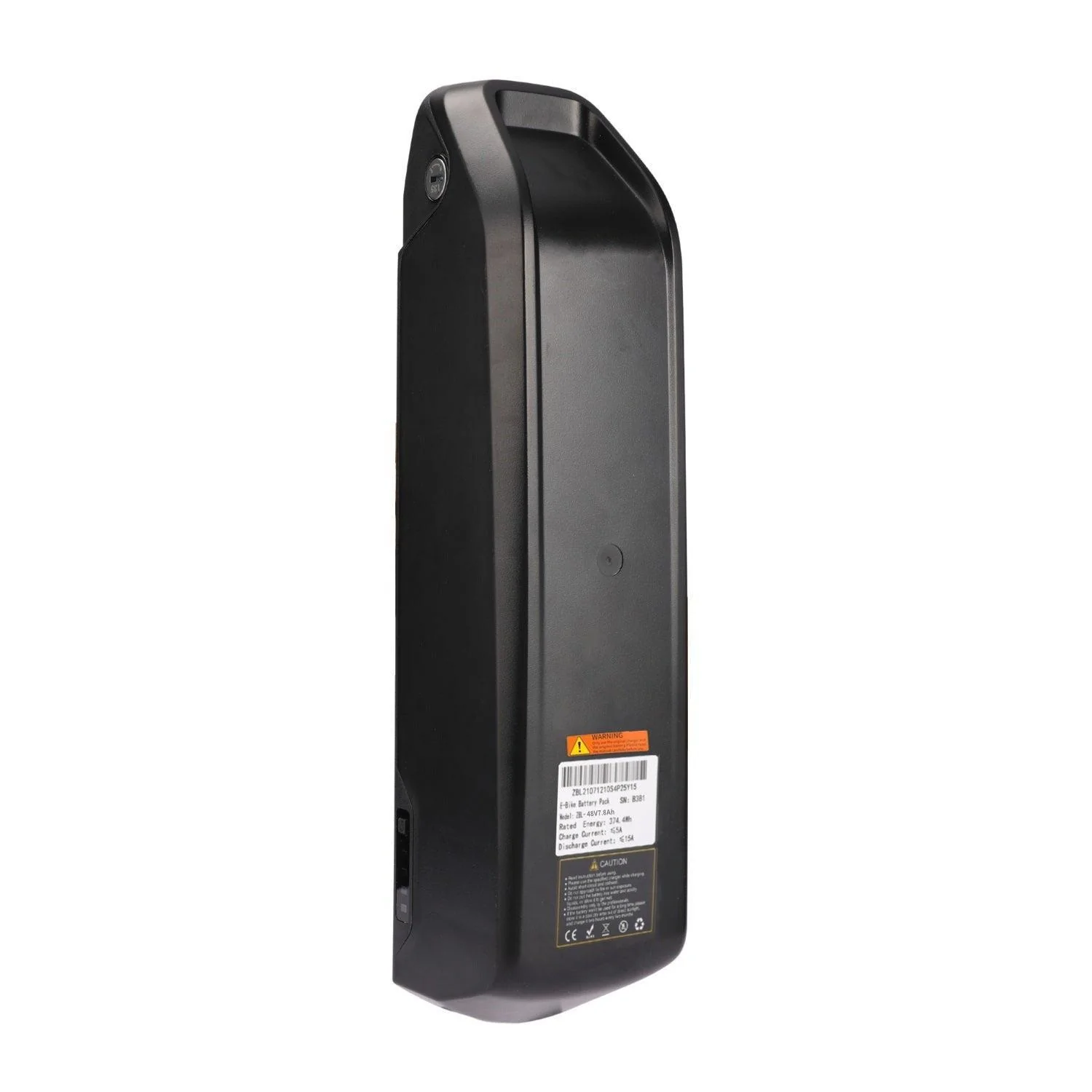

VIVI Electric Bike Battery For H6 Ebike
Purchase Notes:
（1）Before purchasing, please confirm whether the picture and battery back port are correct. If you are not sure whether the battery is compatible, please click here to contact customer service for purchase guidance. Don't buy wrong! Wrong purchase and cannot be used!

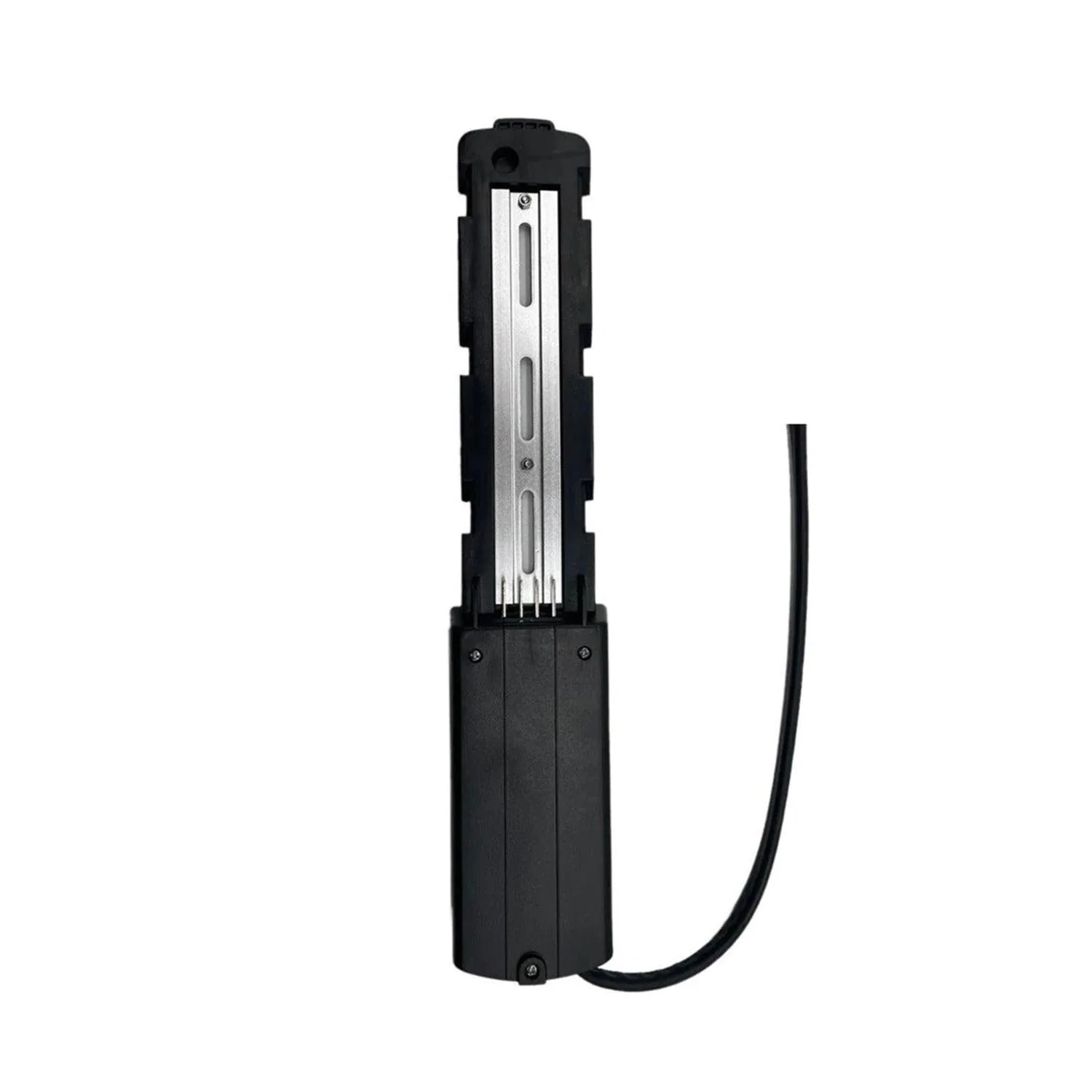

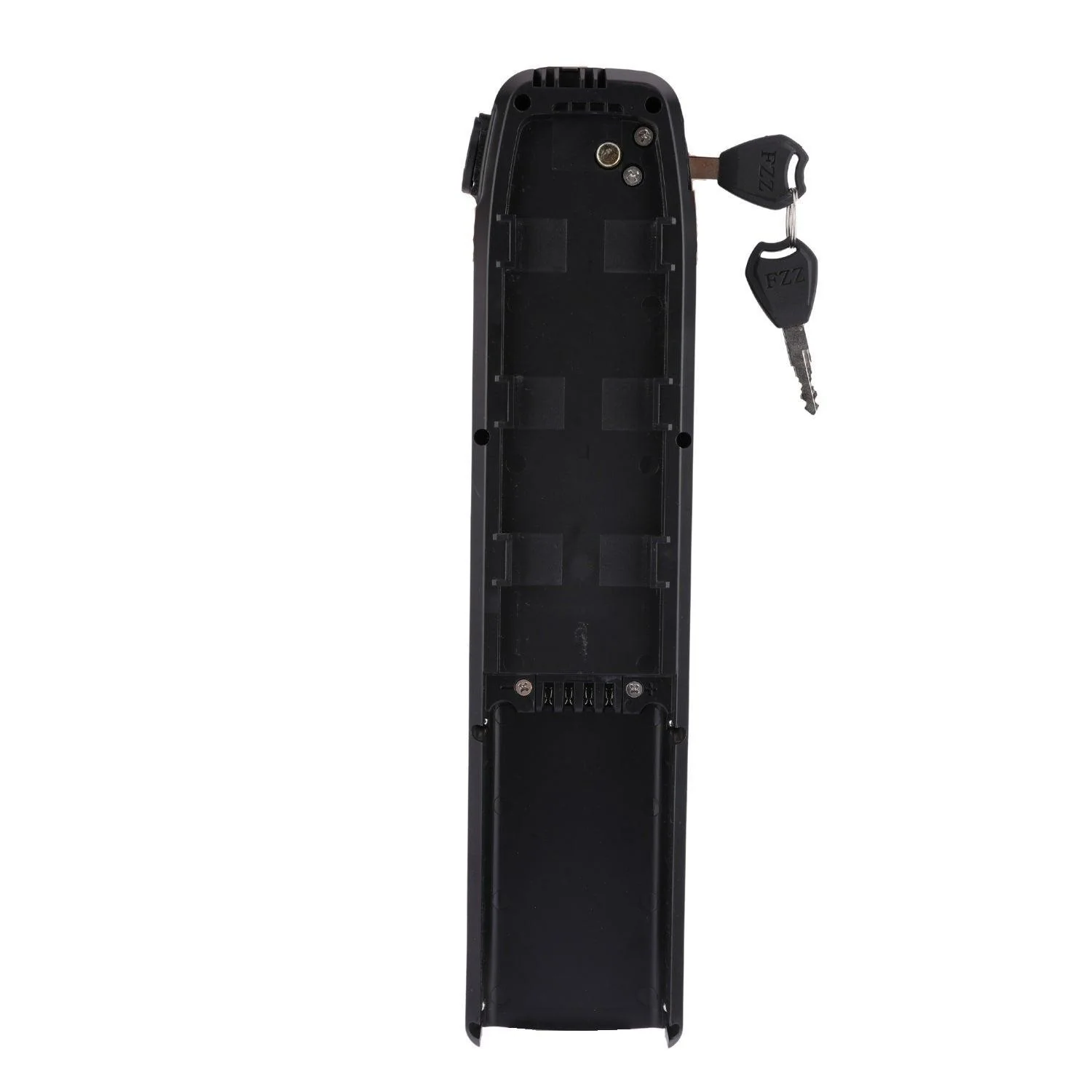

（2）The port on the back of the battery is different, so it is not compatible and the battery base cannot be replaced.

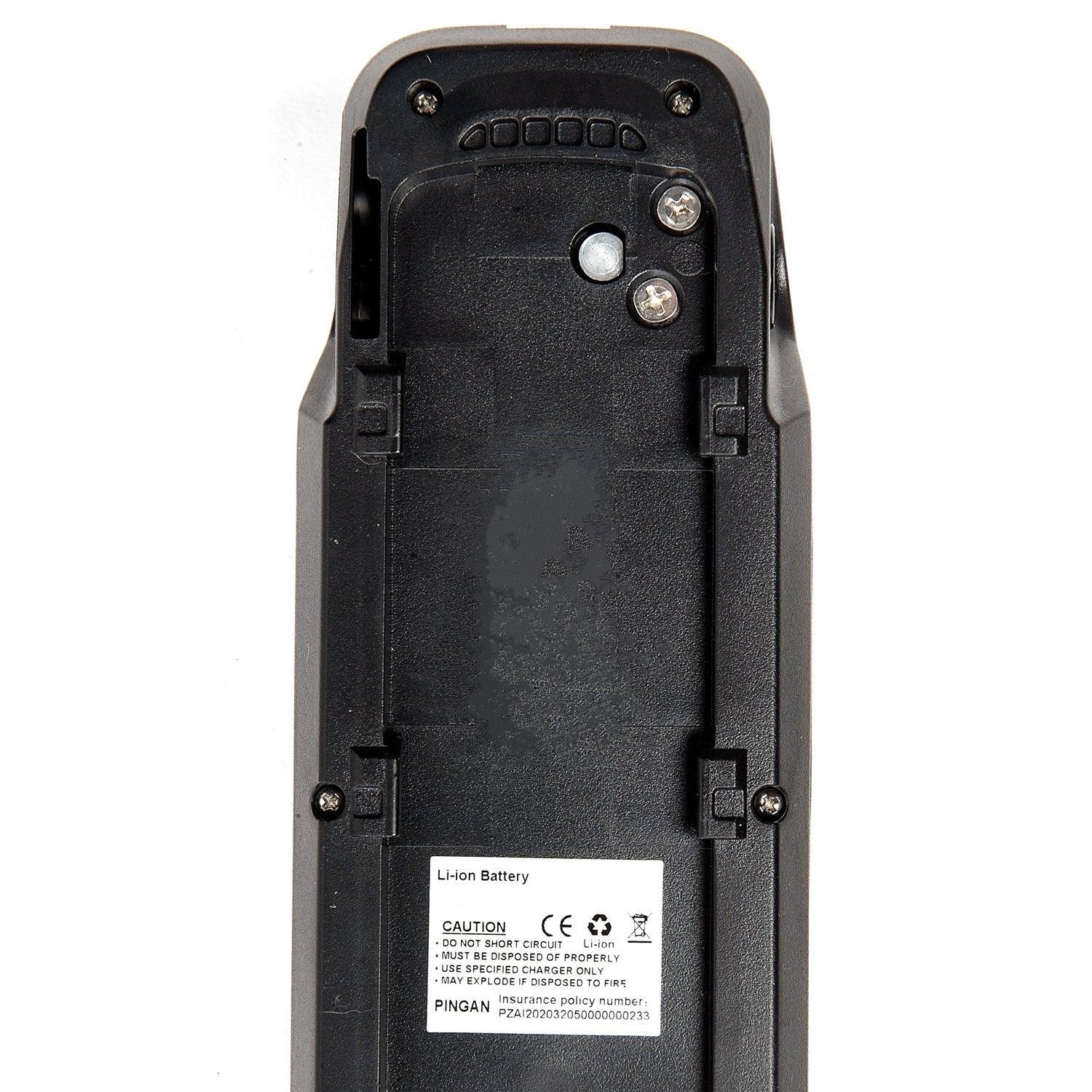

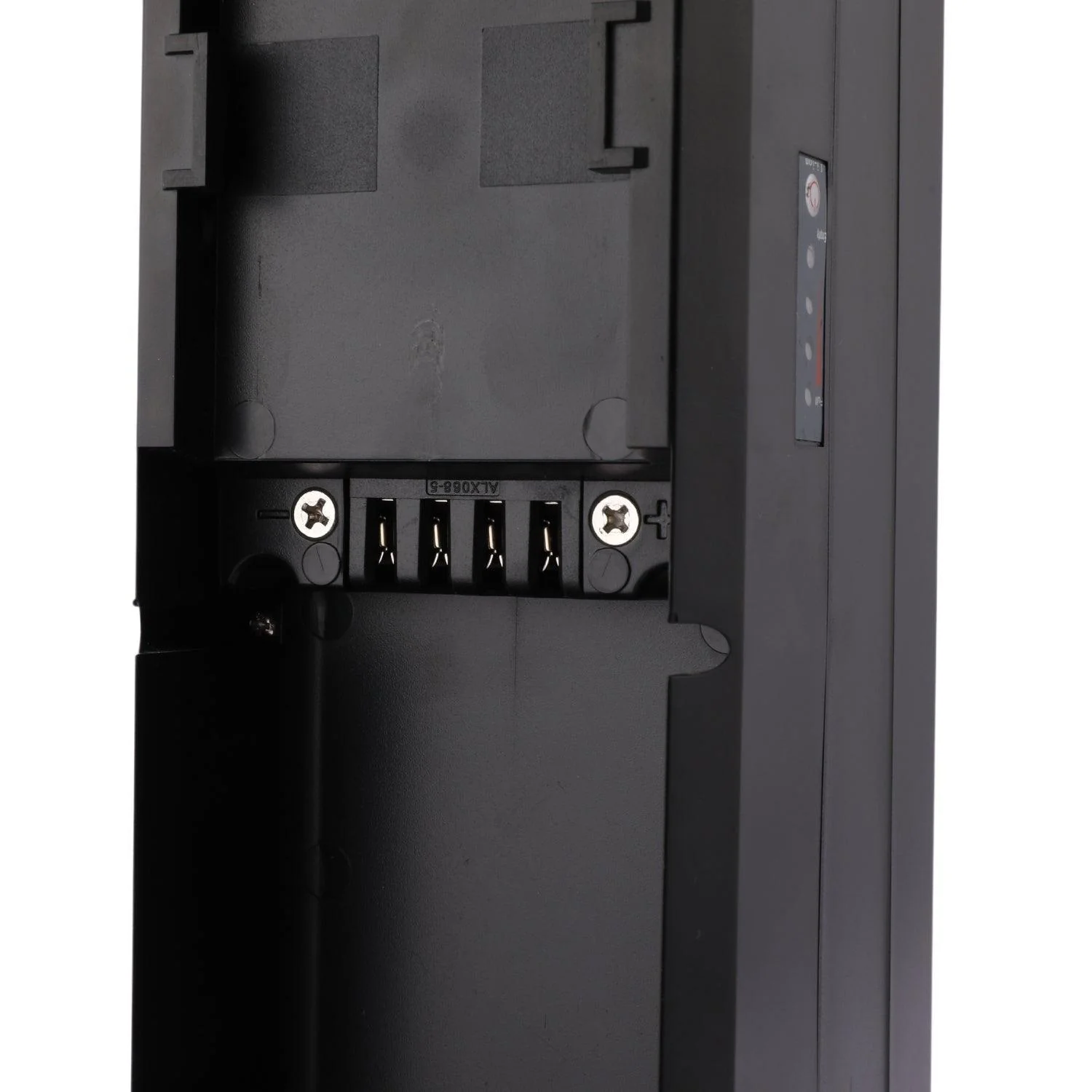

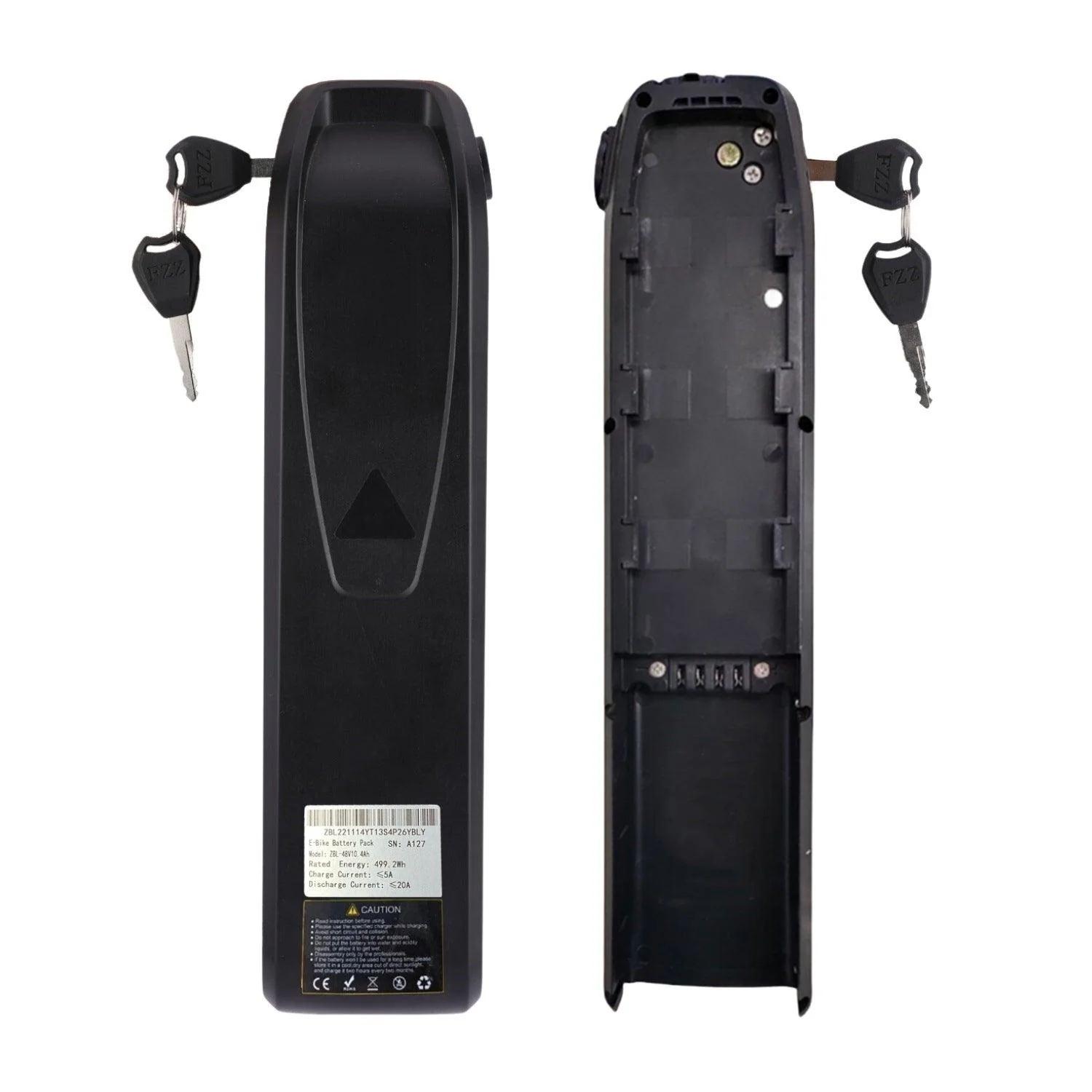

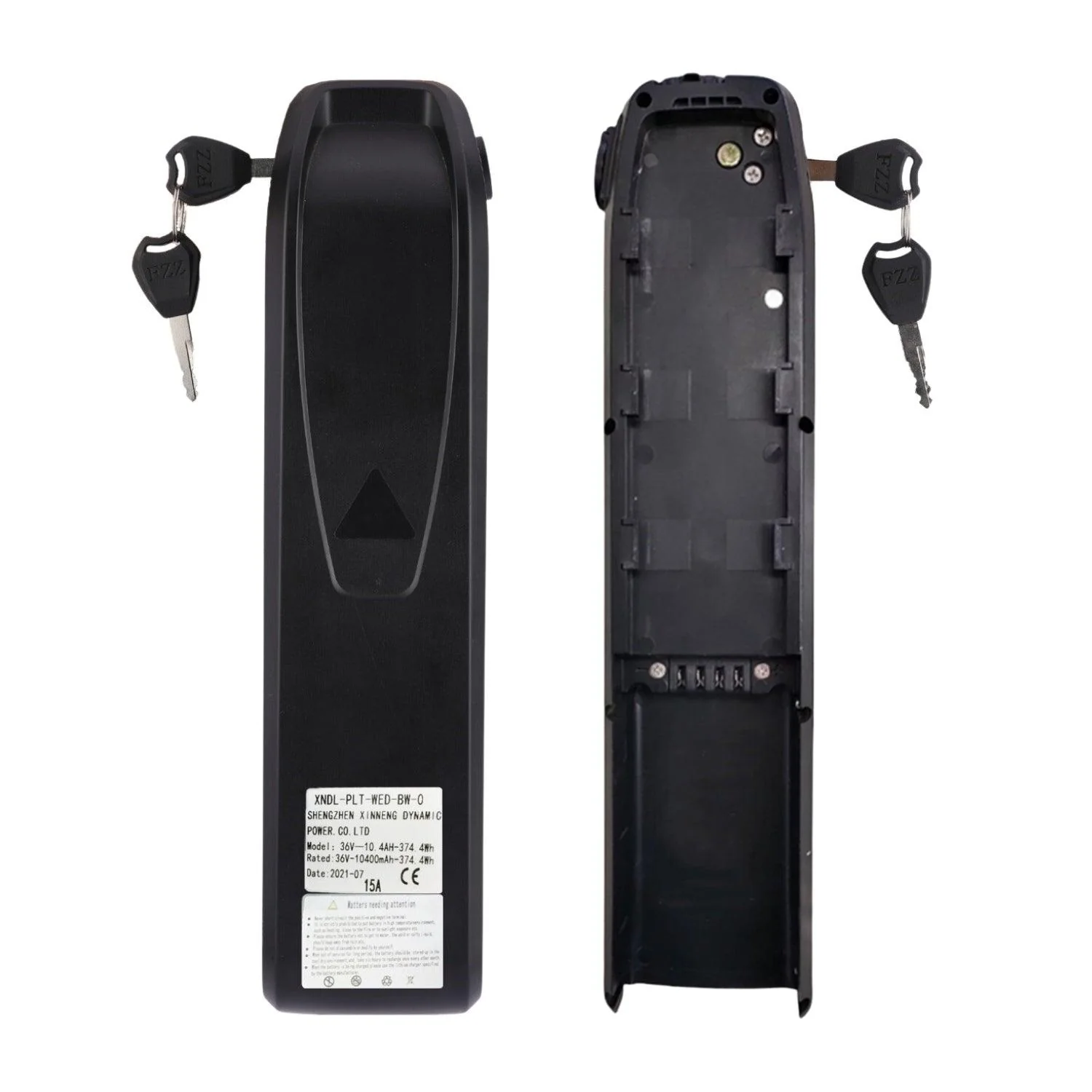

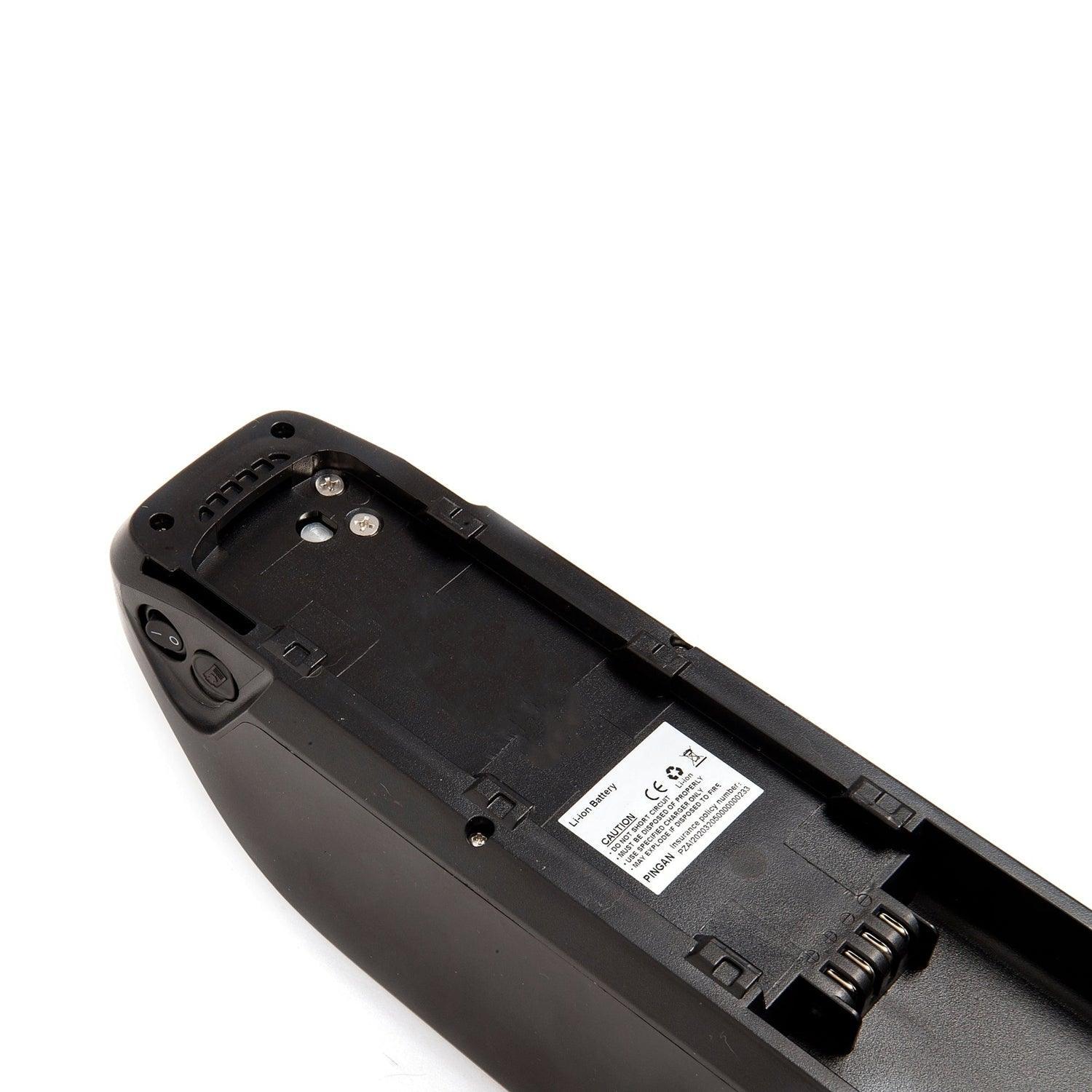

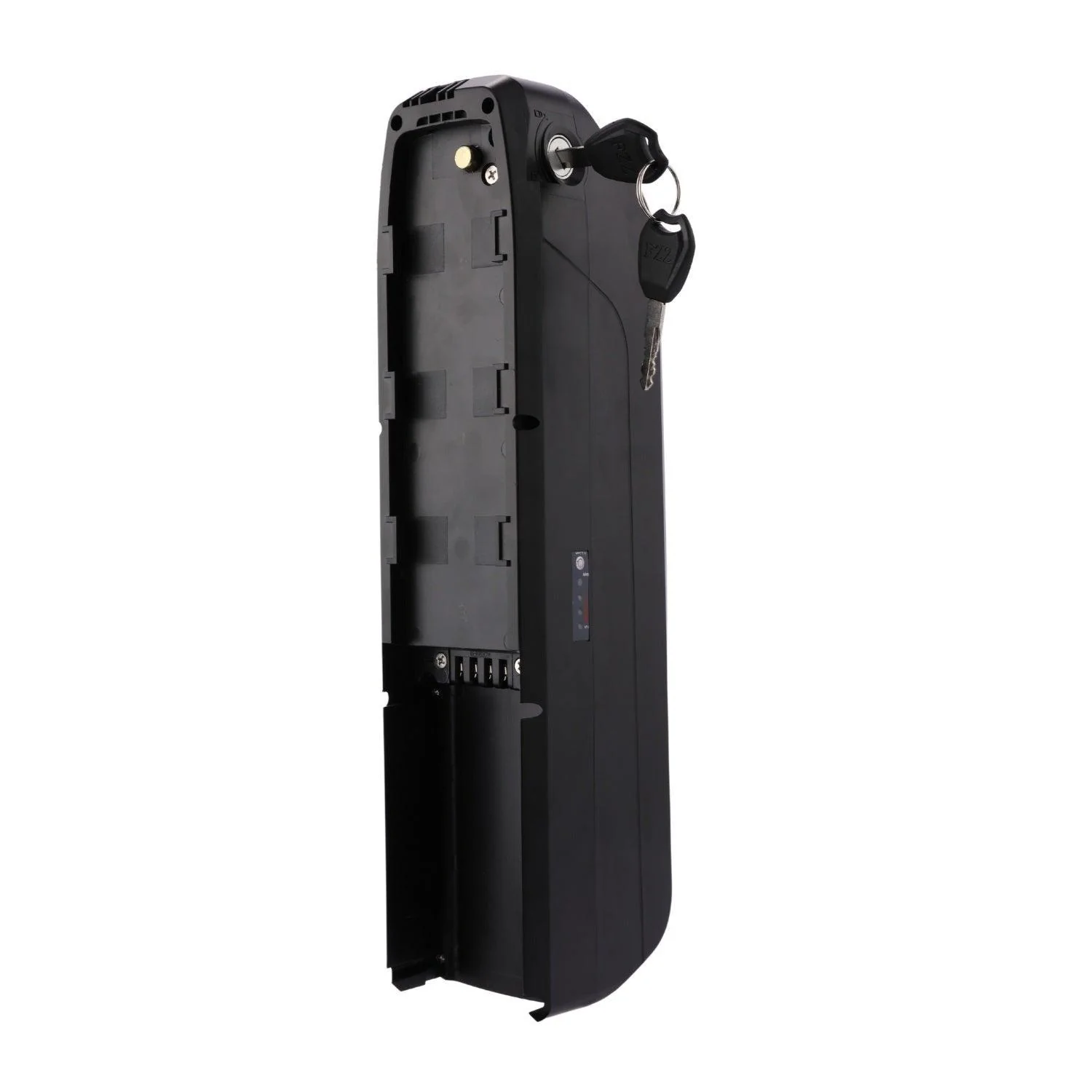

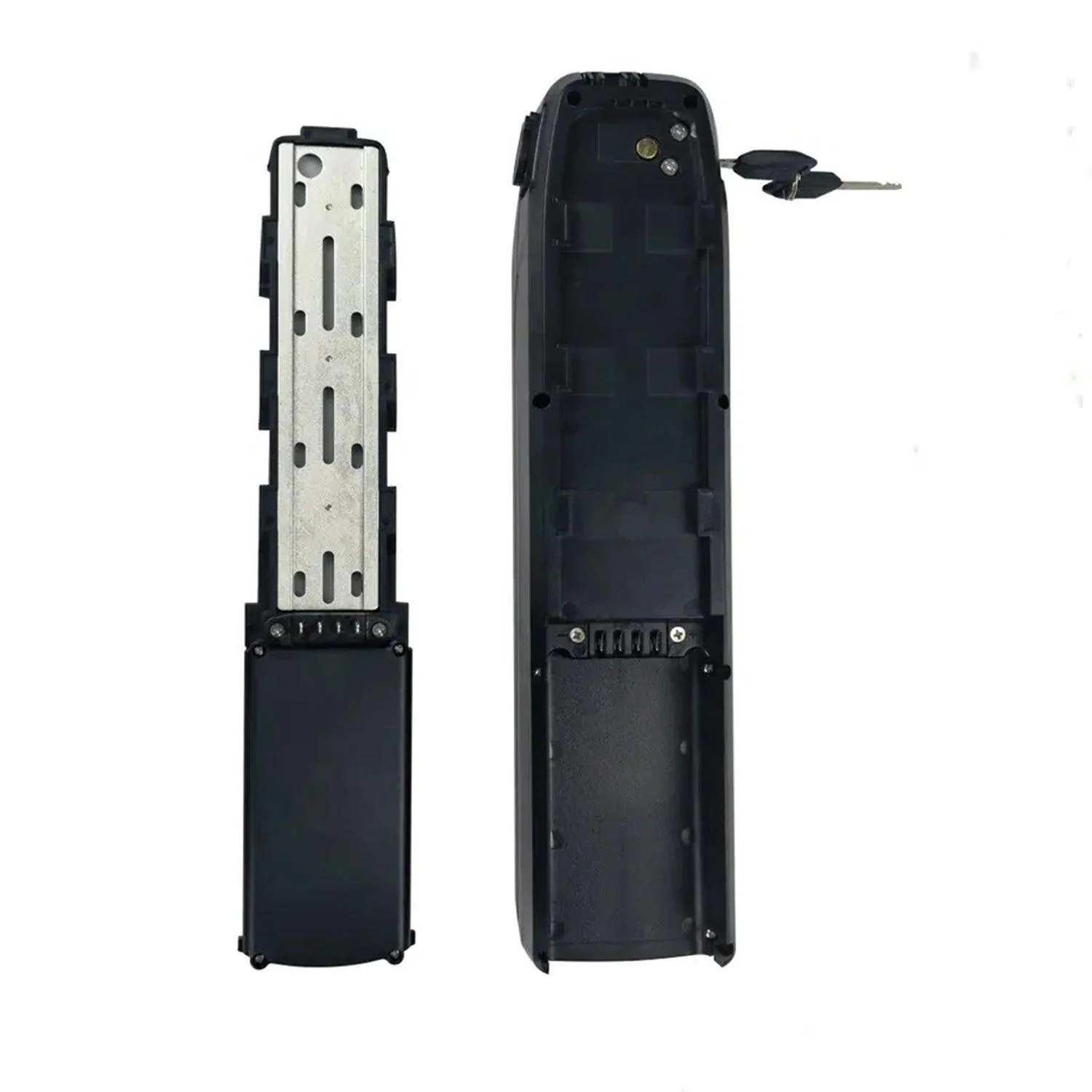

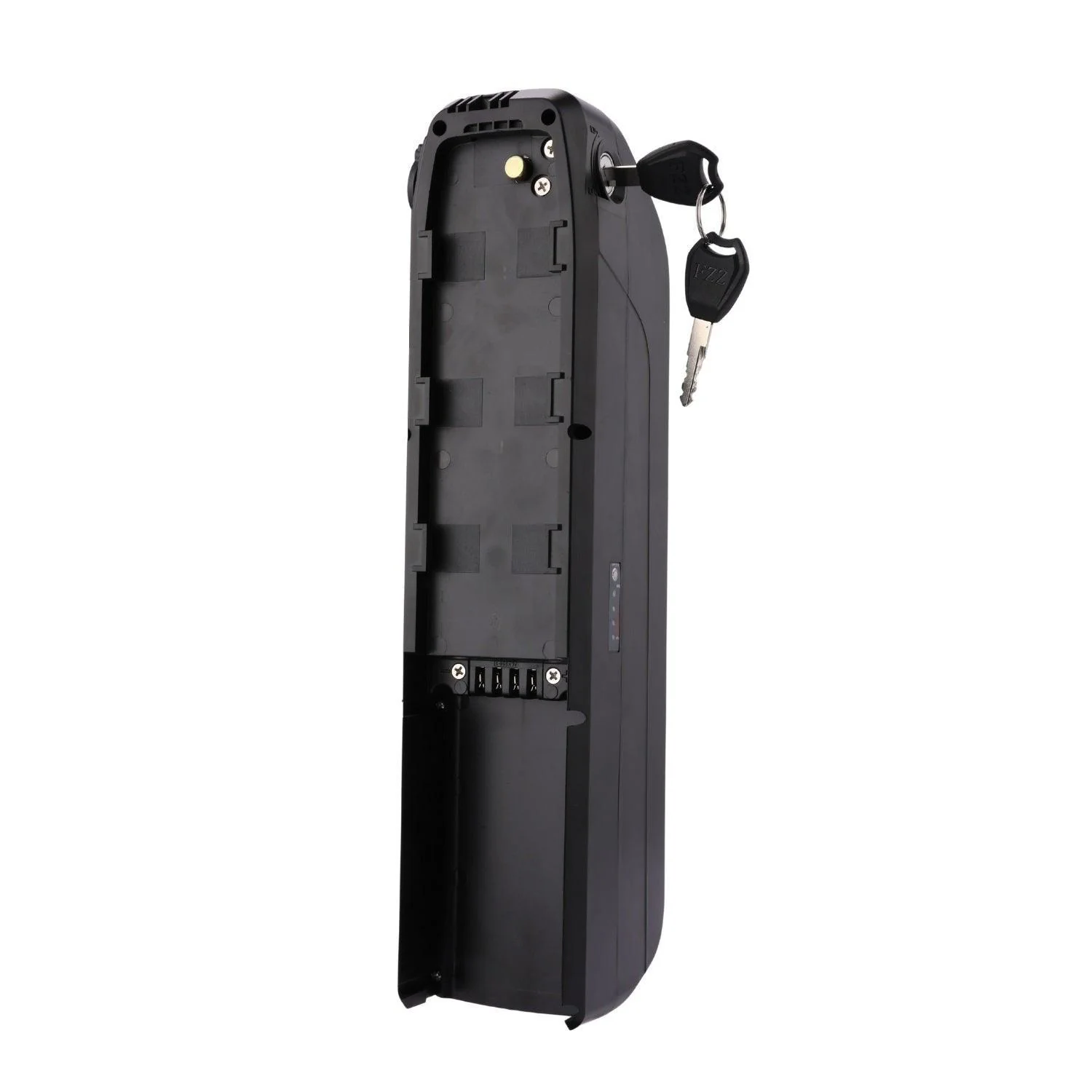

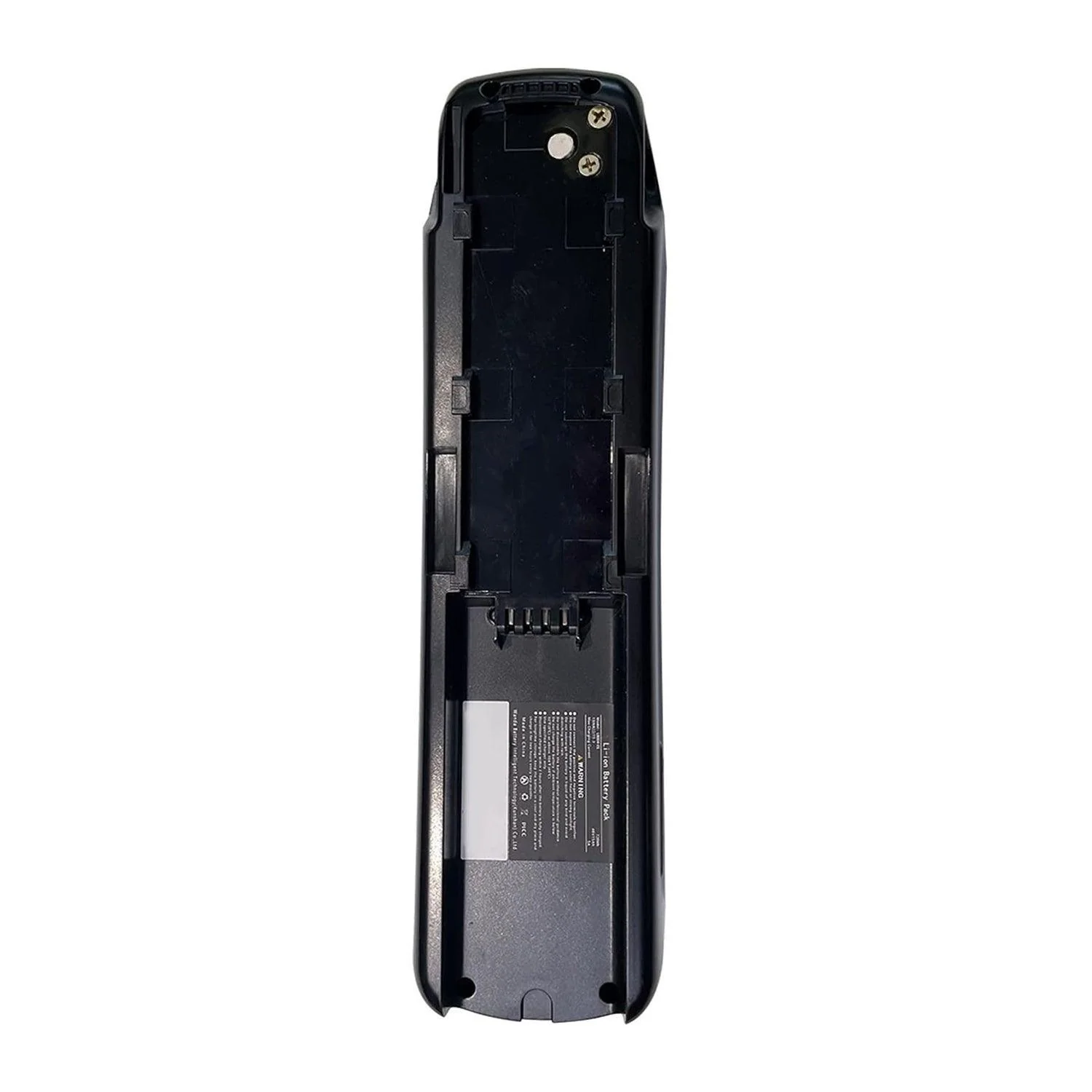

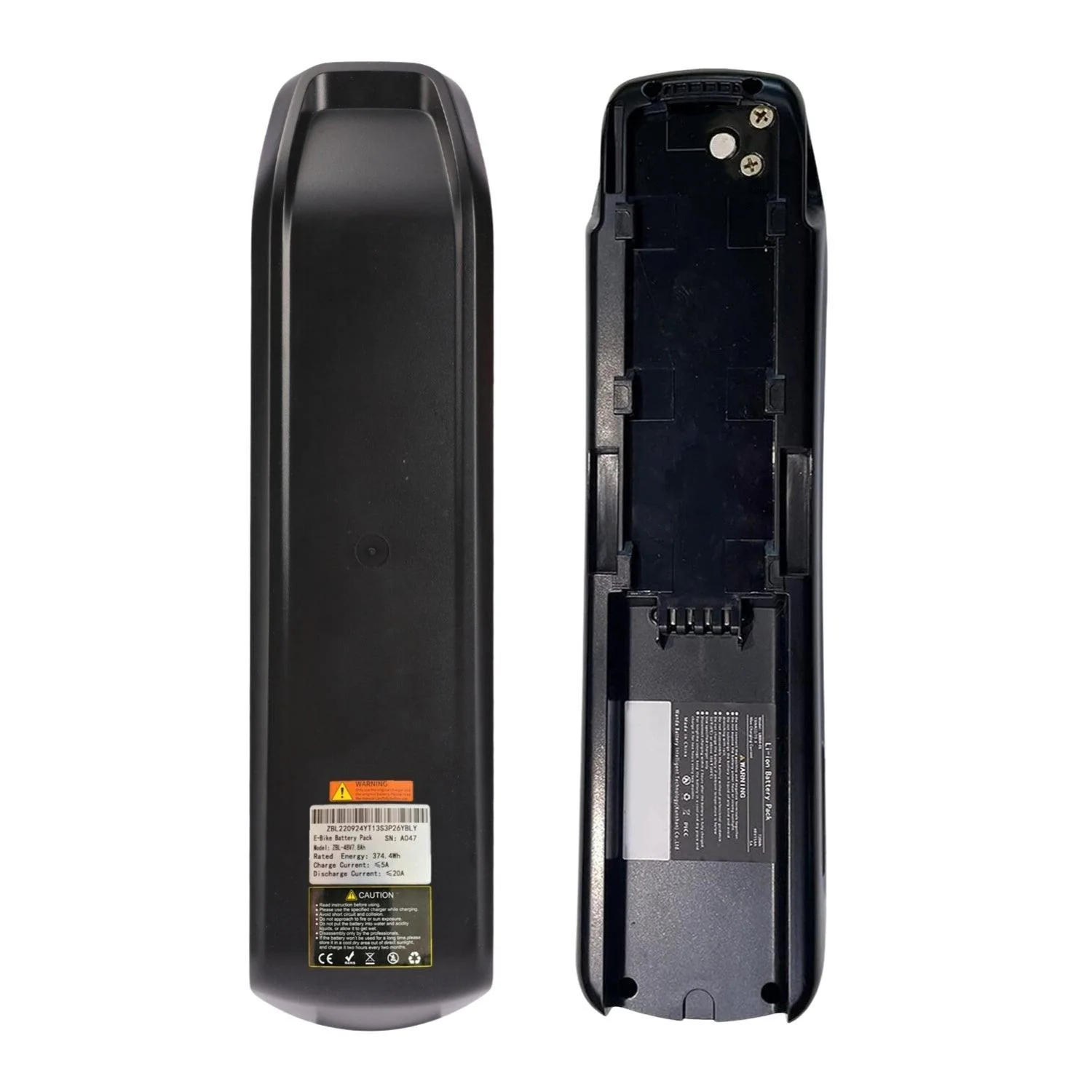

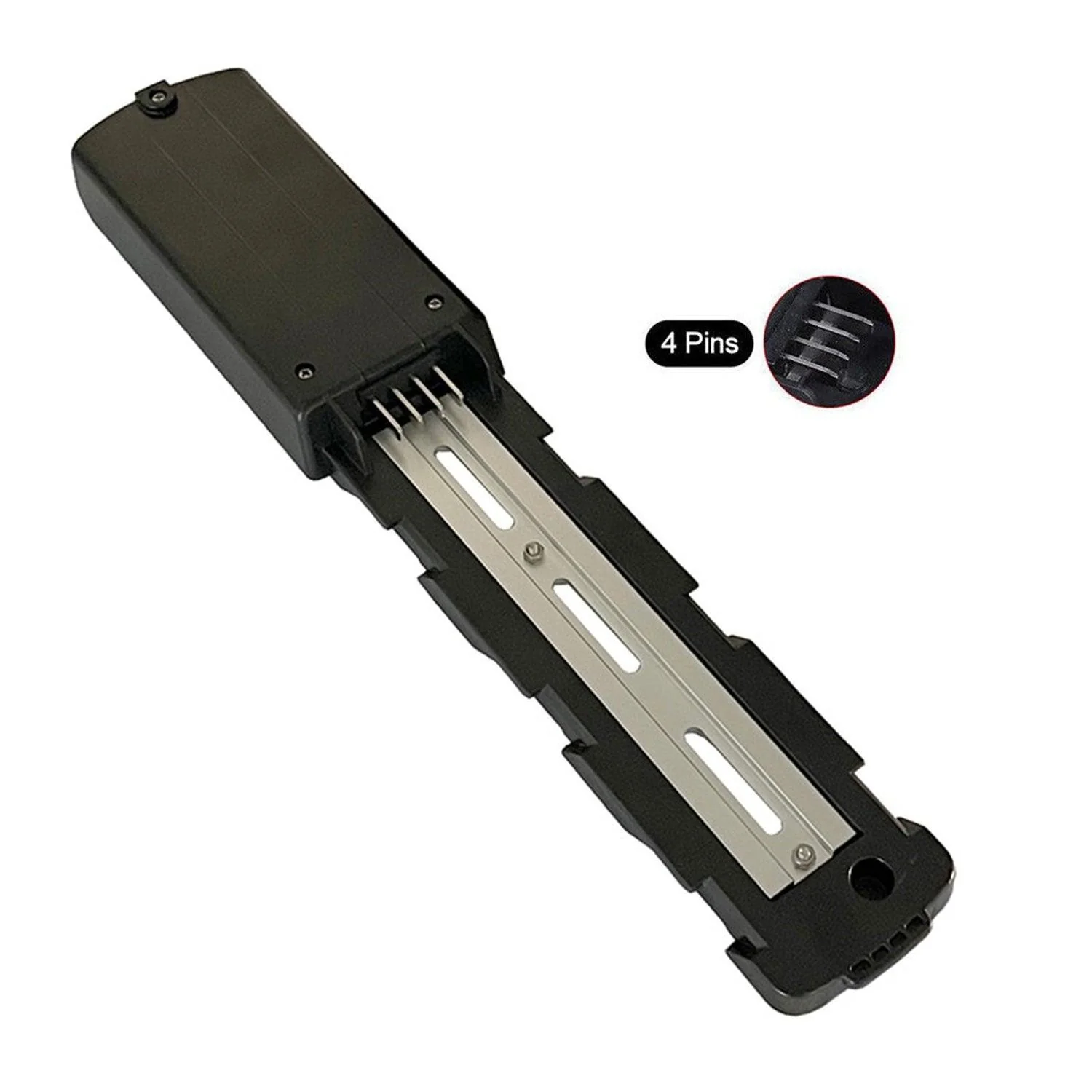

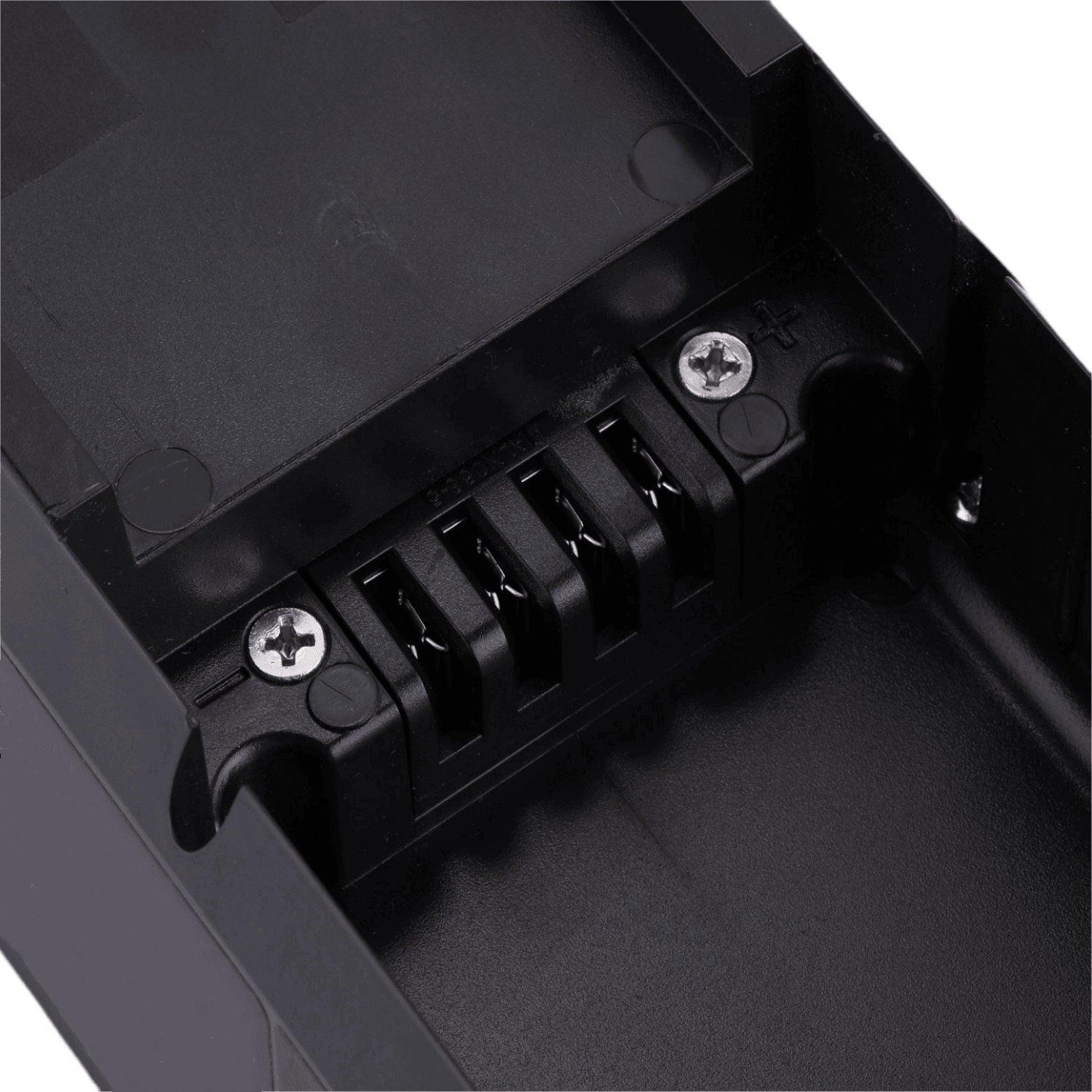

- 4 Pins (DP-5C): There are 4 pins on the insert port on the back of the battery and no white screws next to it.

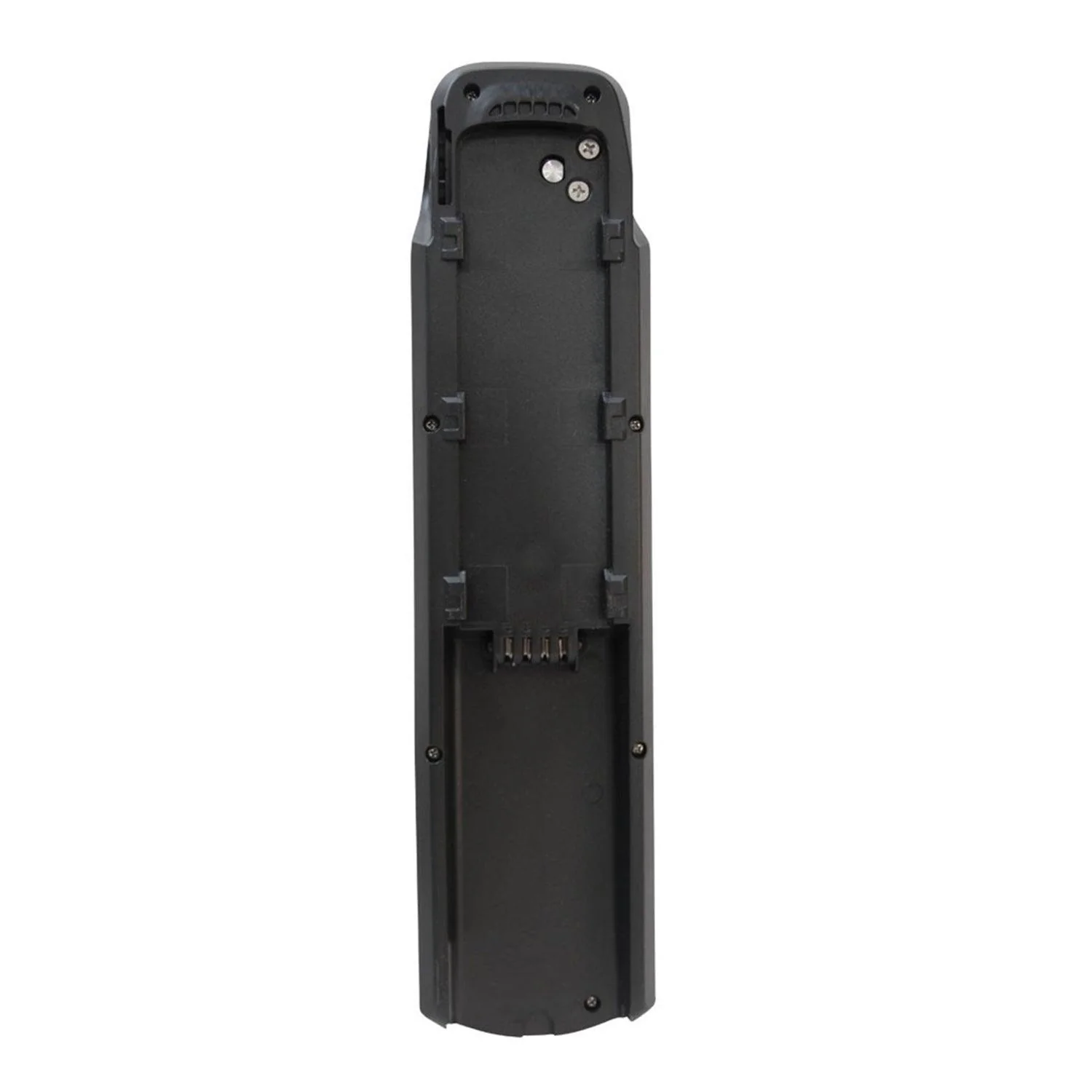

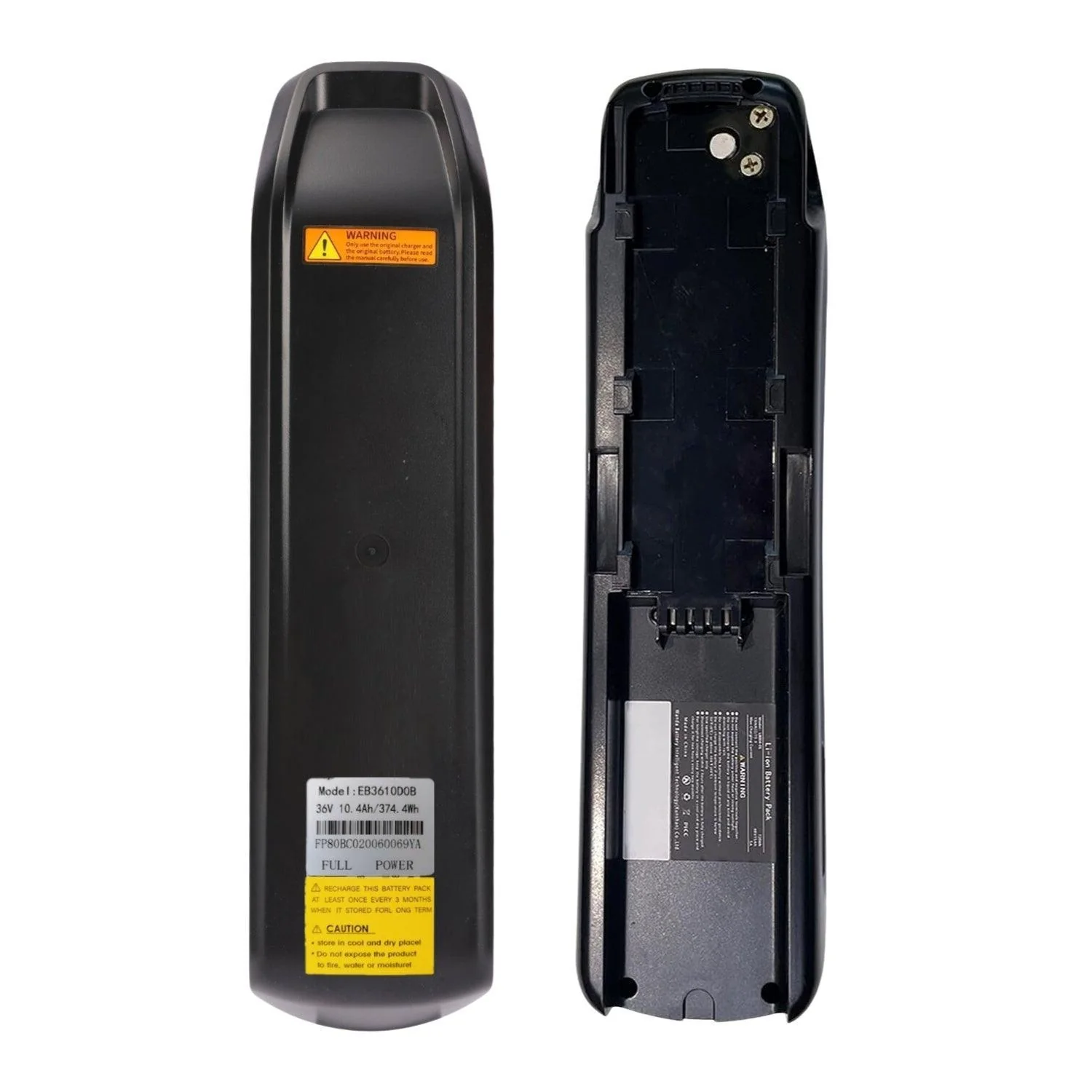

- 4 Pins (HL068): There are 4 pins on the insert port on the back of the battery and 2 white screws next to it.
（3）Free shipping on all orders.This Bike battery are shipped from United States & China Warehouse, delivery time is 7-25 working days.
（4）Batteries are special items and cannot be returned. No refunds or exchanges if you buy the wrong battery!
（5）Please check the primary battery specification and battery Port before purchasing. The 36V 10.4AH battery for 350W H6 Electric Bike, and the 48V 7.8AH/10.4AH battery for 500W H6 Electric Bike!

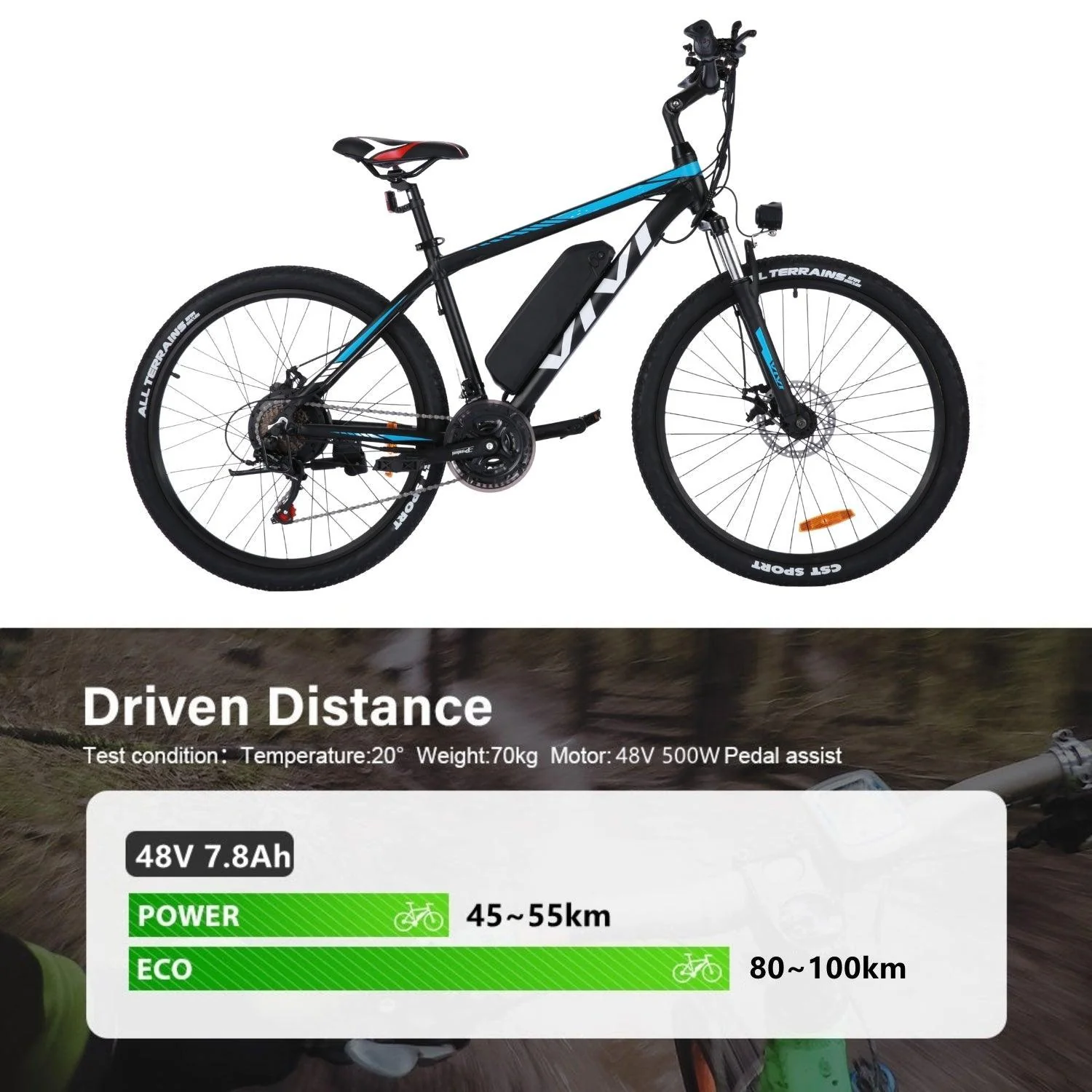

Applicable Bike Model
| STYLE | BIKE MODEL | BIKE STYLE | BIKES |
|

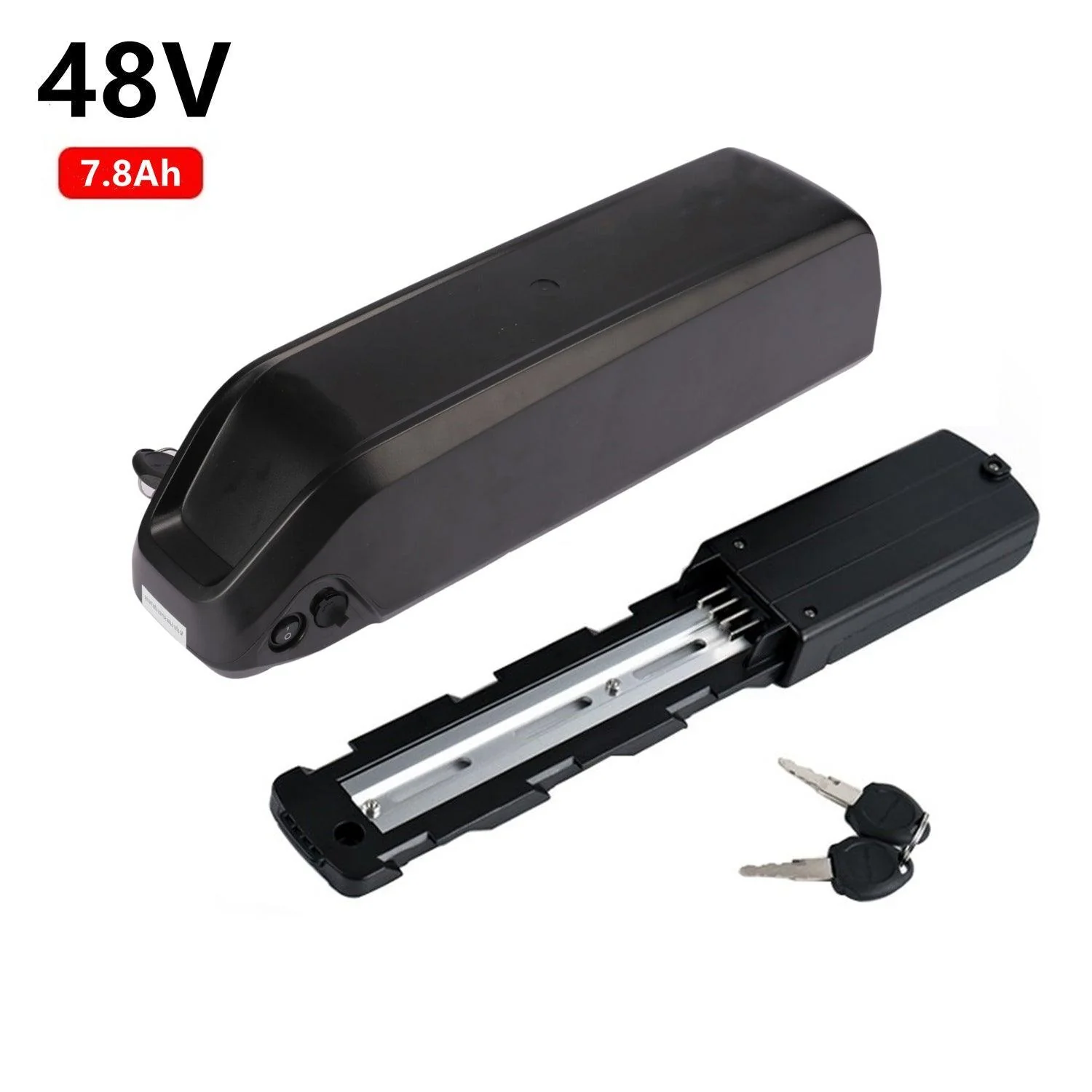

48V 7.8AH 4 Pins (DP-5C) |
H6 | SPA000036 (26″) |
500W 48V |  |
|
48V 10.4AH 4 Pins (HL068) |
H6 Plus | SPA000036 (27.5″) |
500W 48V |
 |
|
36V 10.4AH 4 Pins (DP-5C) 4 Pins (HL068) |
H6 | SPA000036 (26″) |
350W 36V |
|
Product Details
|
Battery Type |
E-bike lithium battery pack |
|||
|
Applicable Scope |
H6 |
|||
|
Battery Cell Composition |
Lithium |
|||
|
Color |
Black |
|||
|
Rated Voltage |
48V/36V |
|||
|
Rated Capacity |
7.8Ah/10.4Ah |
|||
|
Battery Power |
374.4Wh/374.4Wh |
|||
|
Max Charge Voltage |
54.6V/42V |
|||
|
Discharge Cut-off Voltage |
39V/27.5V |
|||
|
Charge Current |
≤3A |
|||
|
Max Charge Current |
≤5A |
|||
|
Standard Discharge Current |
5A |
|||
|
Max Discharge Current(BMS) |
≤20A |
|||
|
Over Current Protection |
60A |
|||
|
Apply to Electric Motor Power |
≤500W/350W |
|||
|
Battery Charger |
54.6V 2A/42V 2A |
|||
|
Charge Time |
5-6 Hours |
|||
|

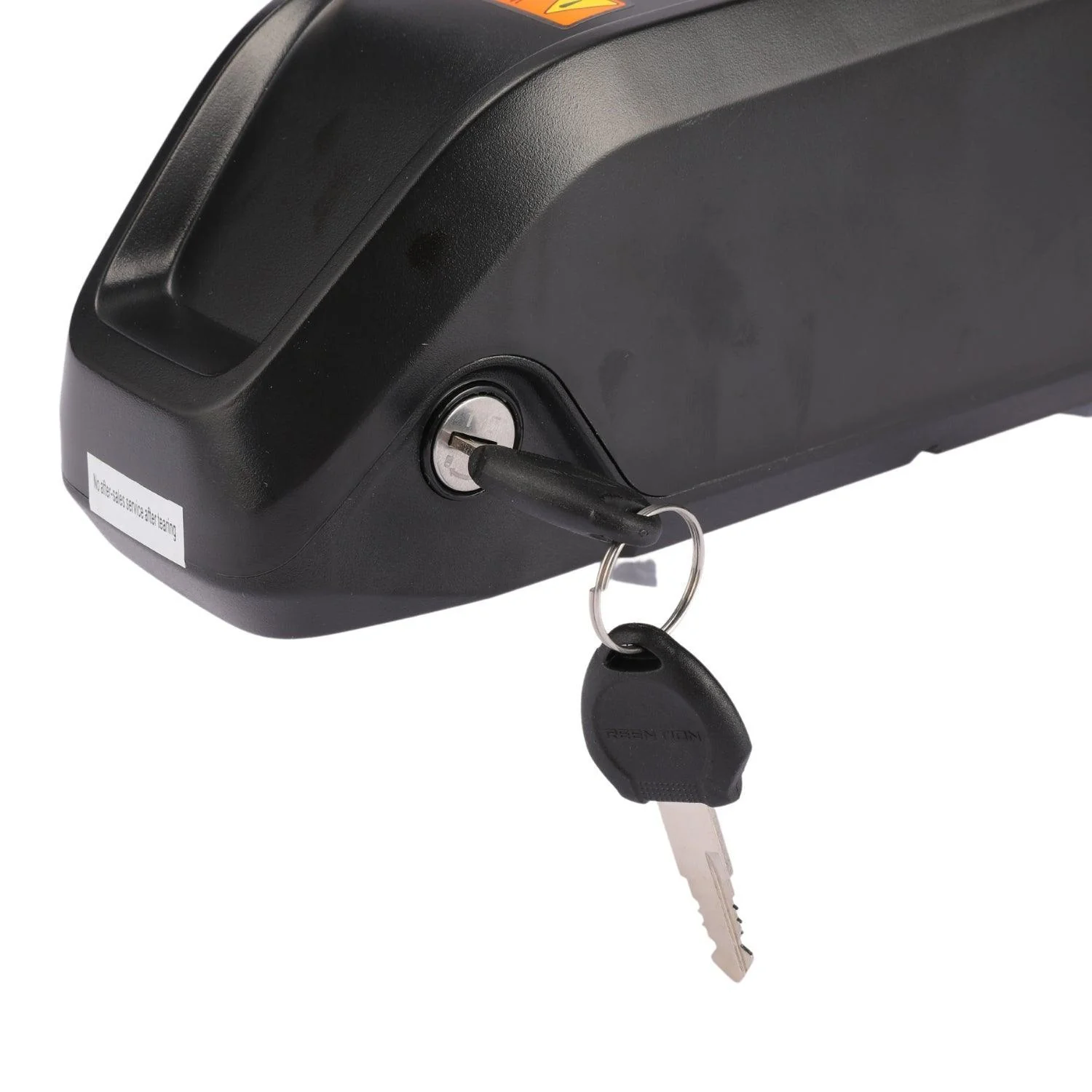

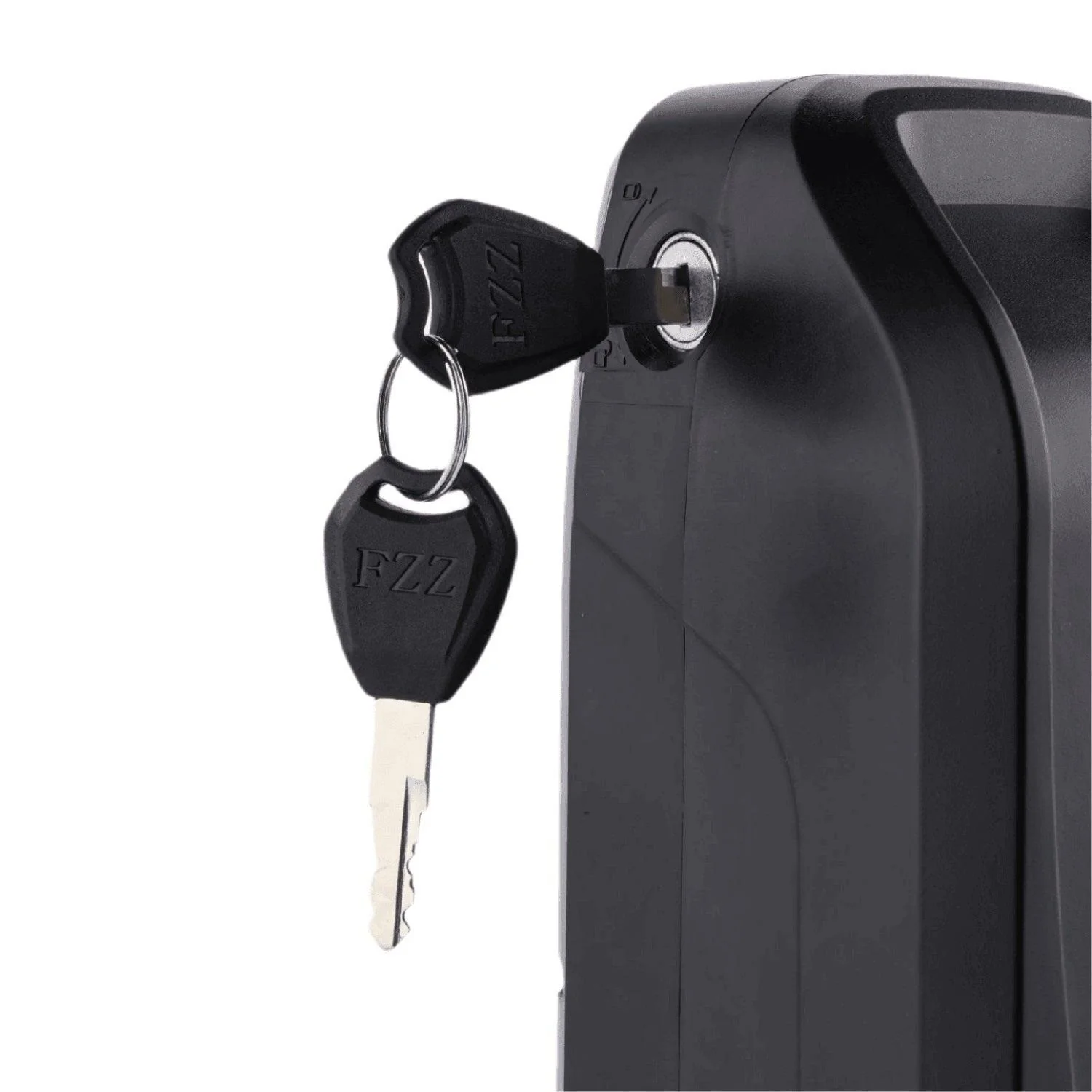

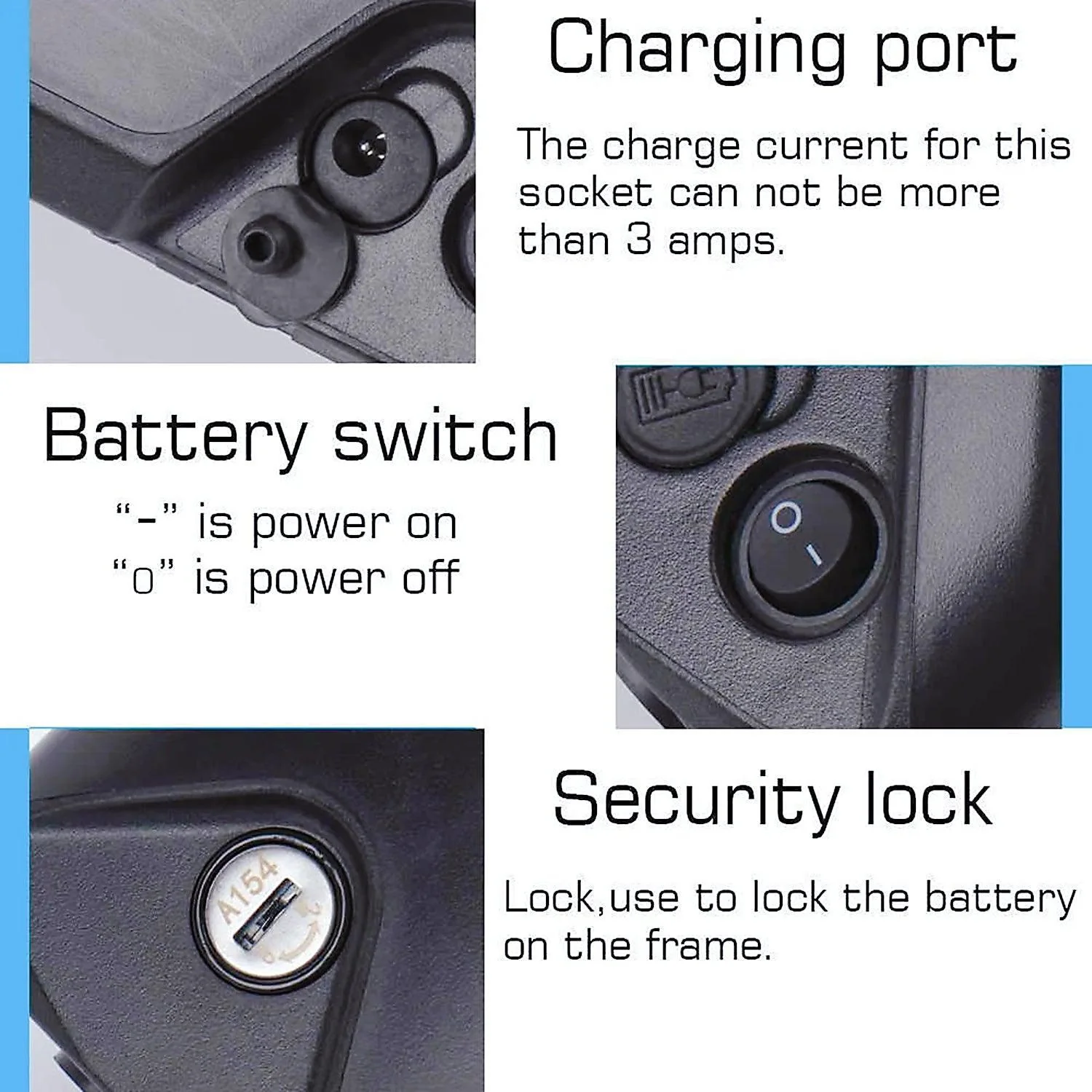

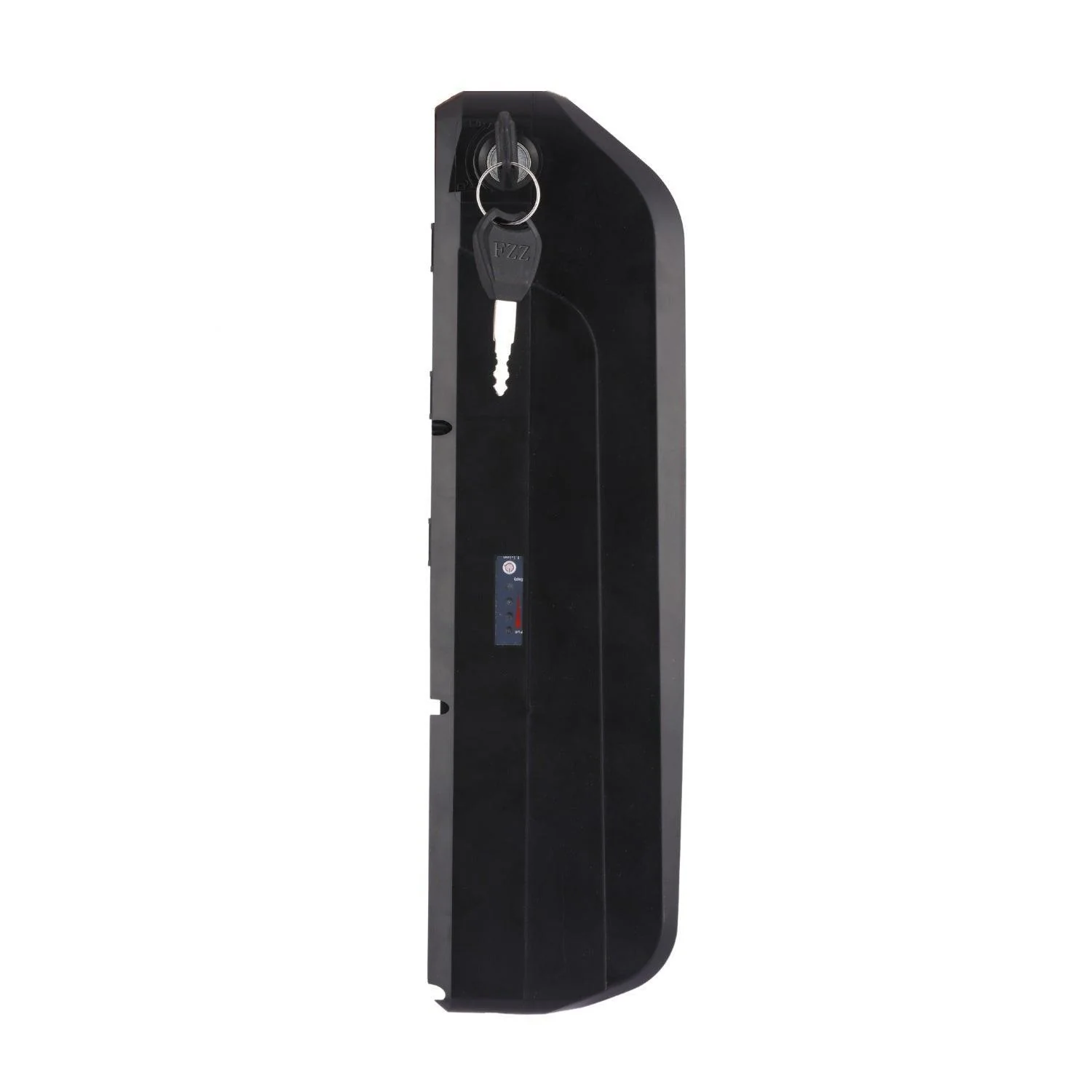

Security Lock |
Yes |
|||
|

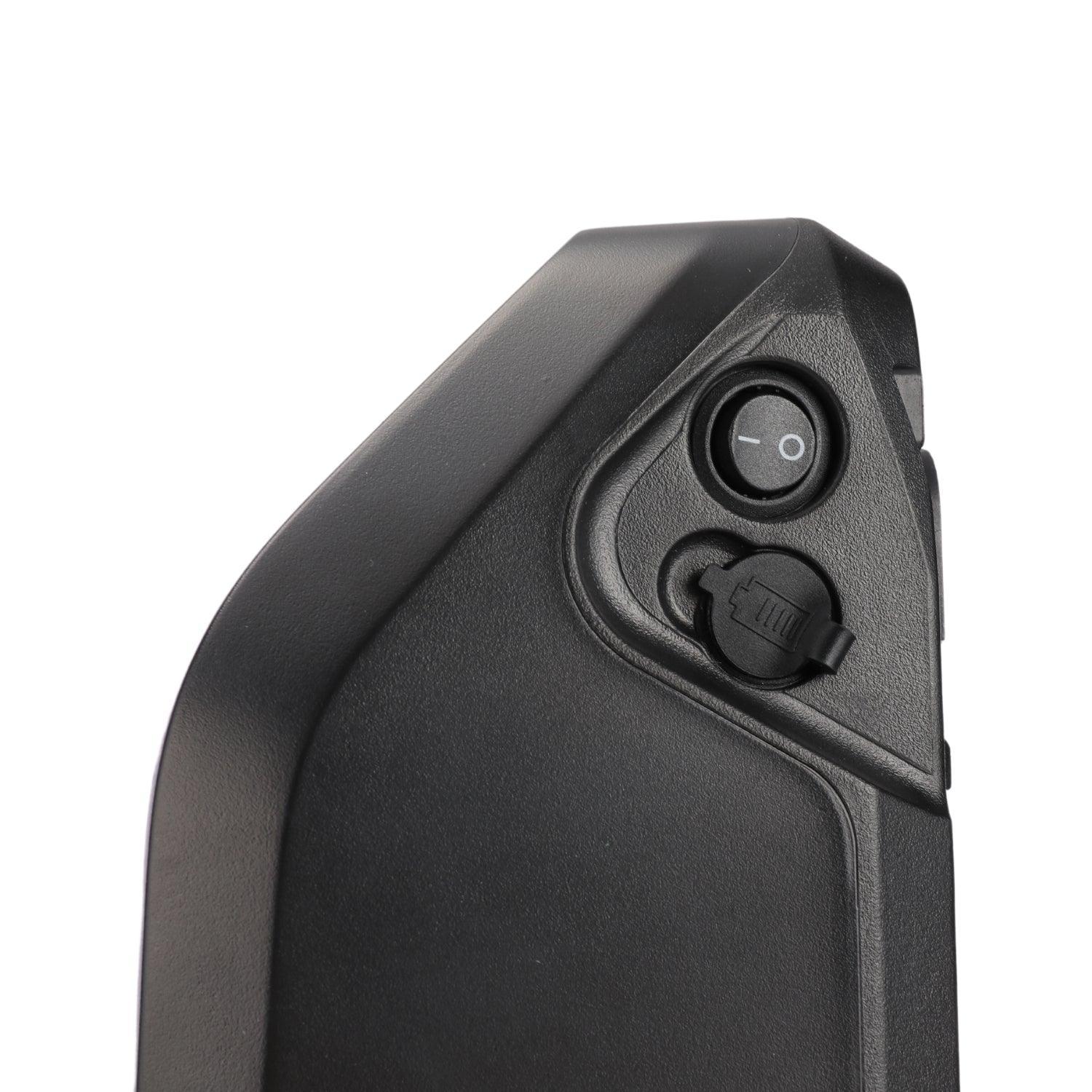

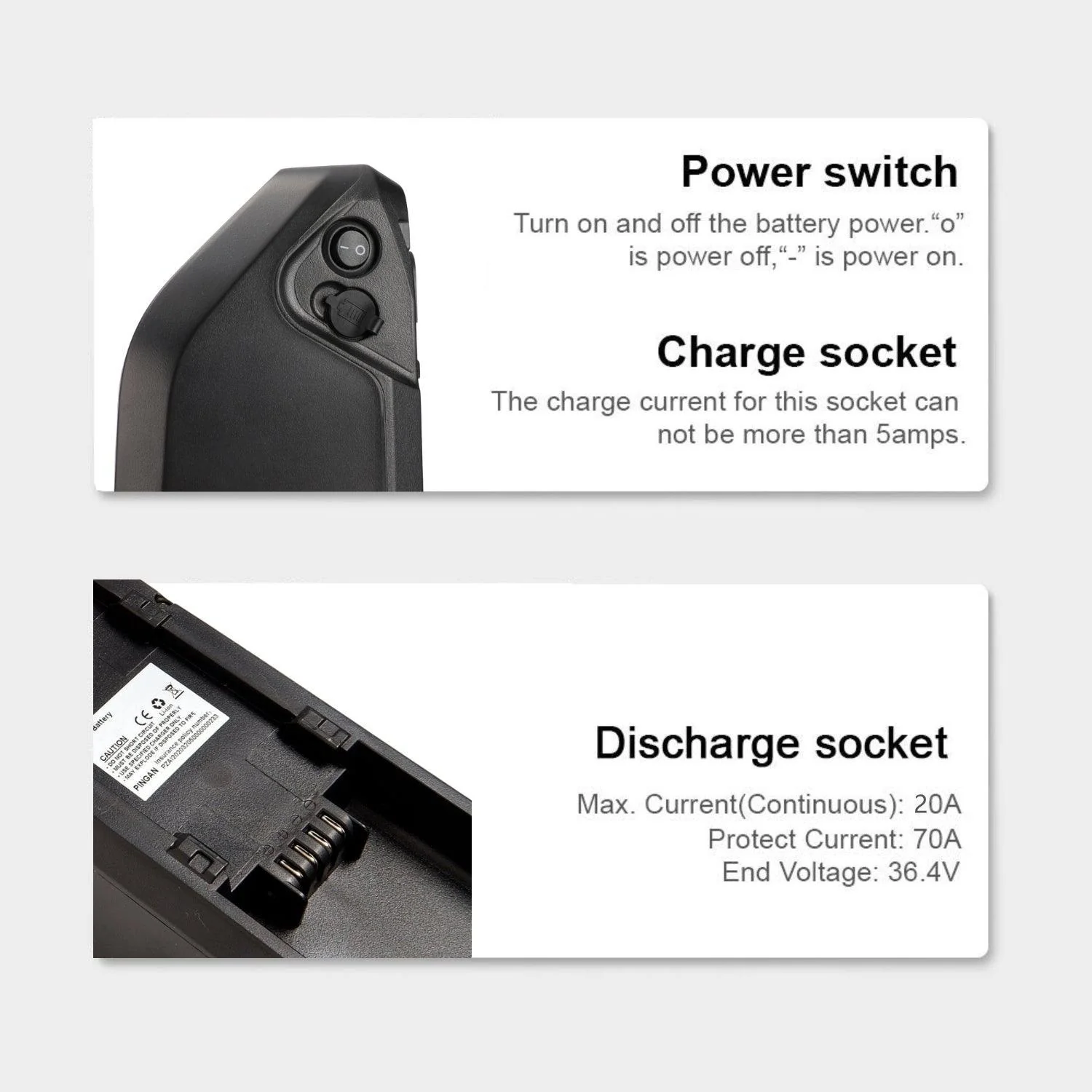

Power Switch |
Yes |
|||
|
Net Weight |
3.5kg/7.7lb |
|||
|
Gross Weight |
4.5kg/9.9lb |
|||
|
Battery Size |
360*90*115mm/14.2×3.5×4.5inch |
|||
|
Packing Size |
460*160*160mm/18.1*6.3*6.3inch |
|||
|
Charge Operating Temperature |
0℃~45℃ |
|||
|
Discharge Operating Temperature |
-10℃~60℃ |
|||

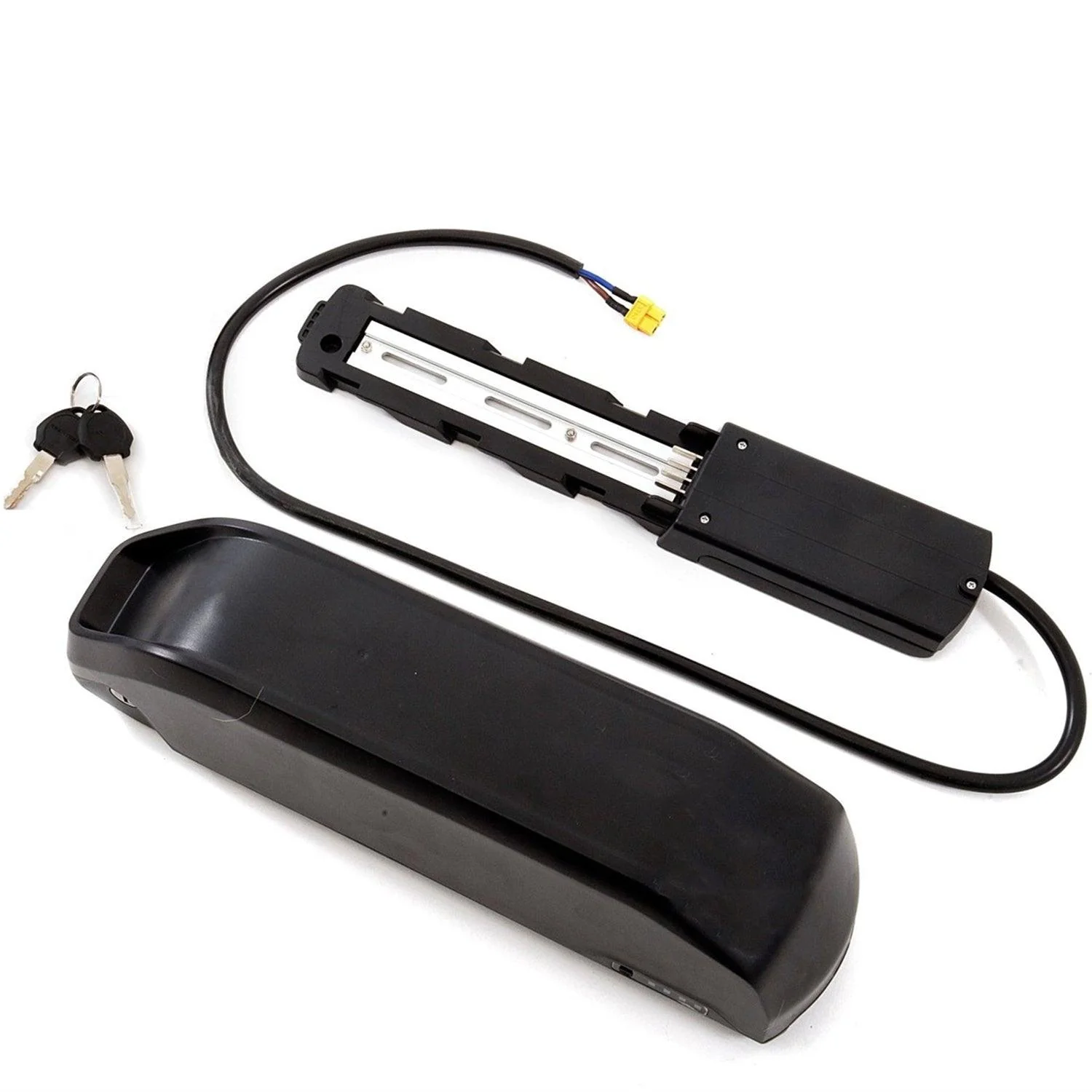

Package Content

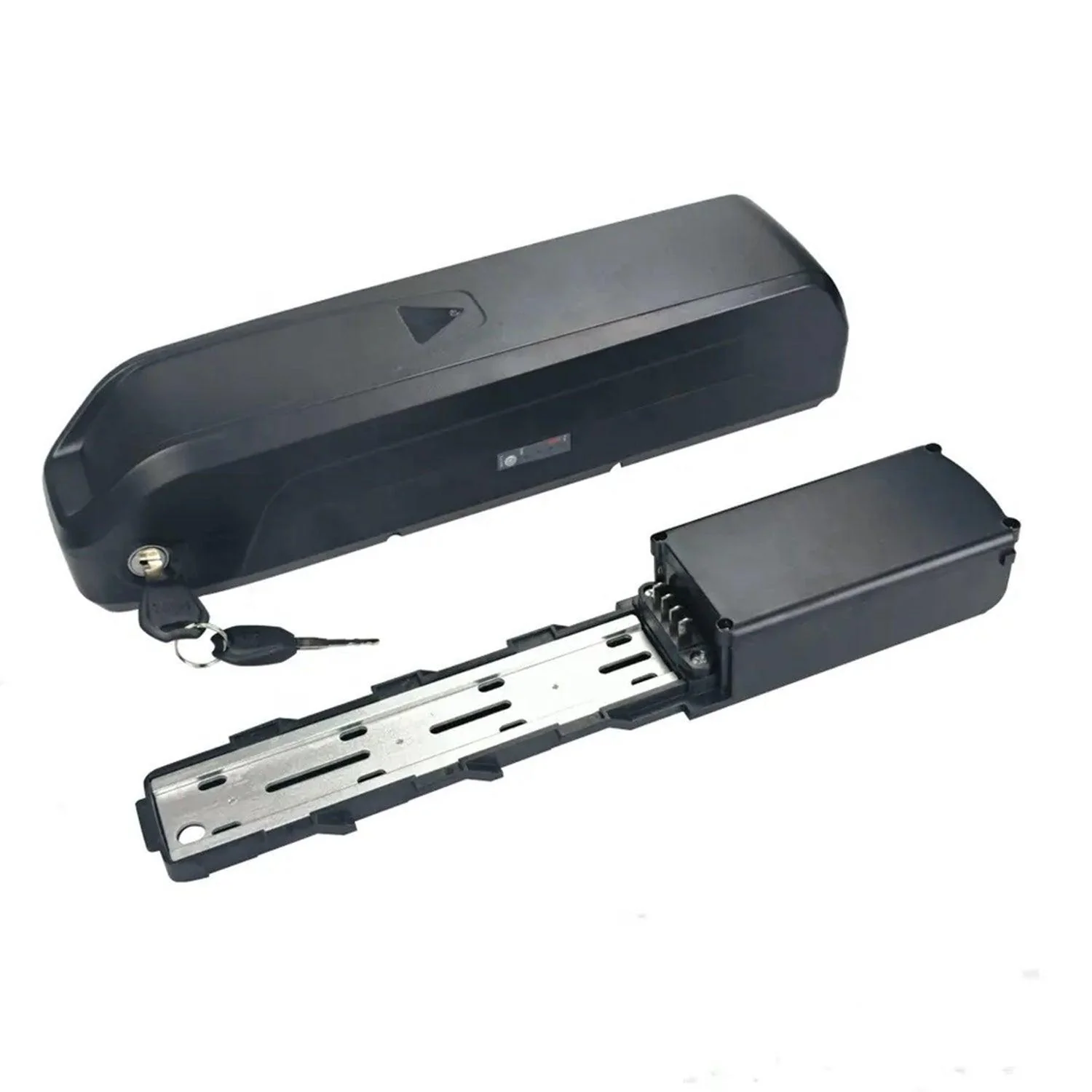

- 1 x Electric Bike Battery

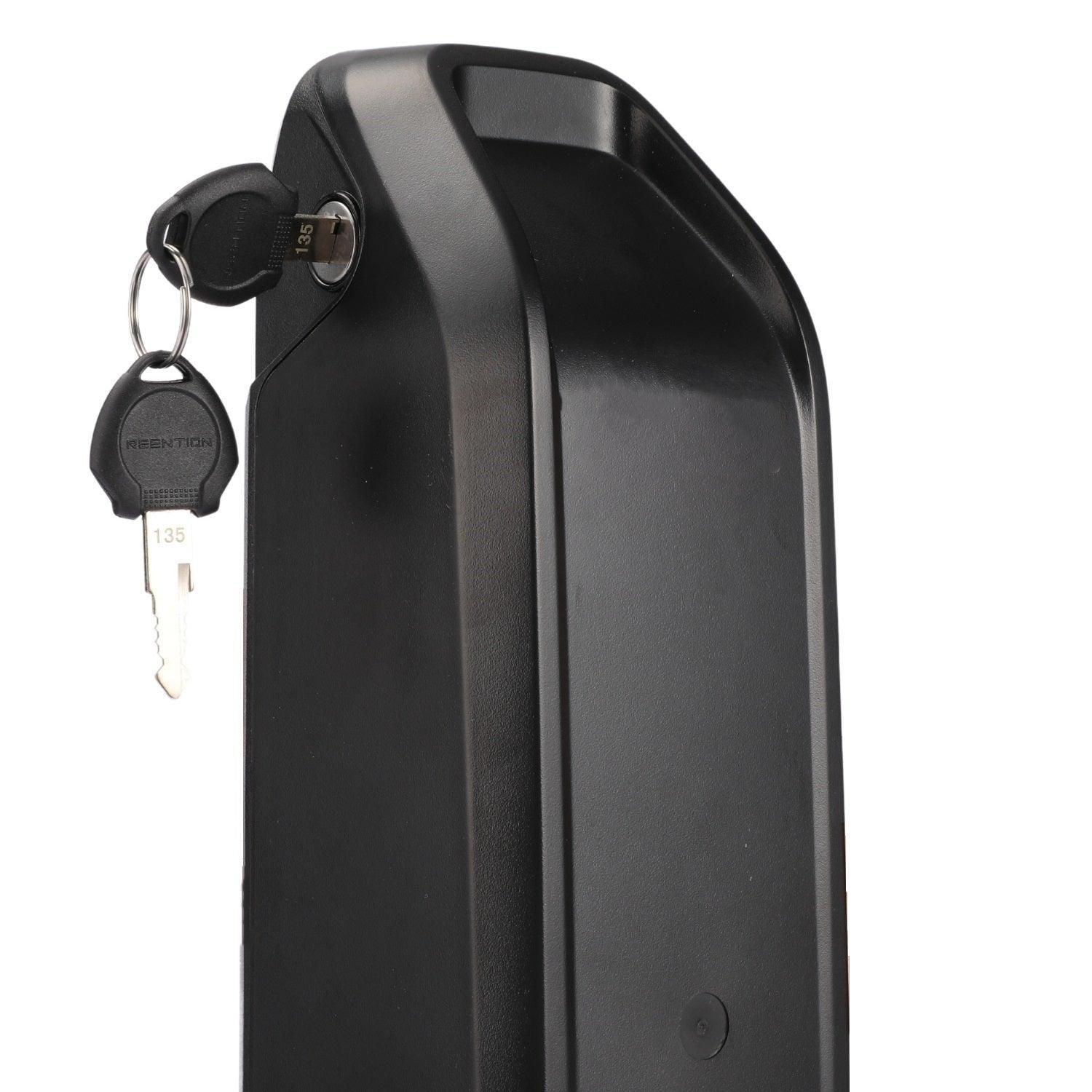

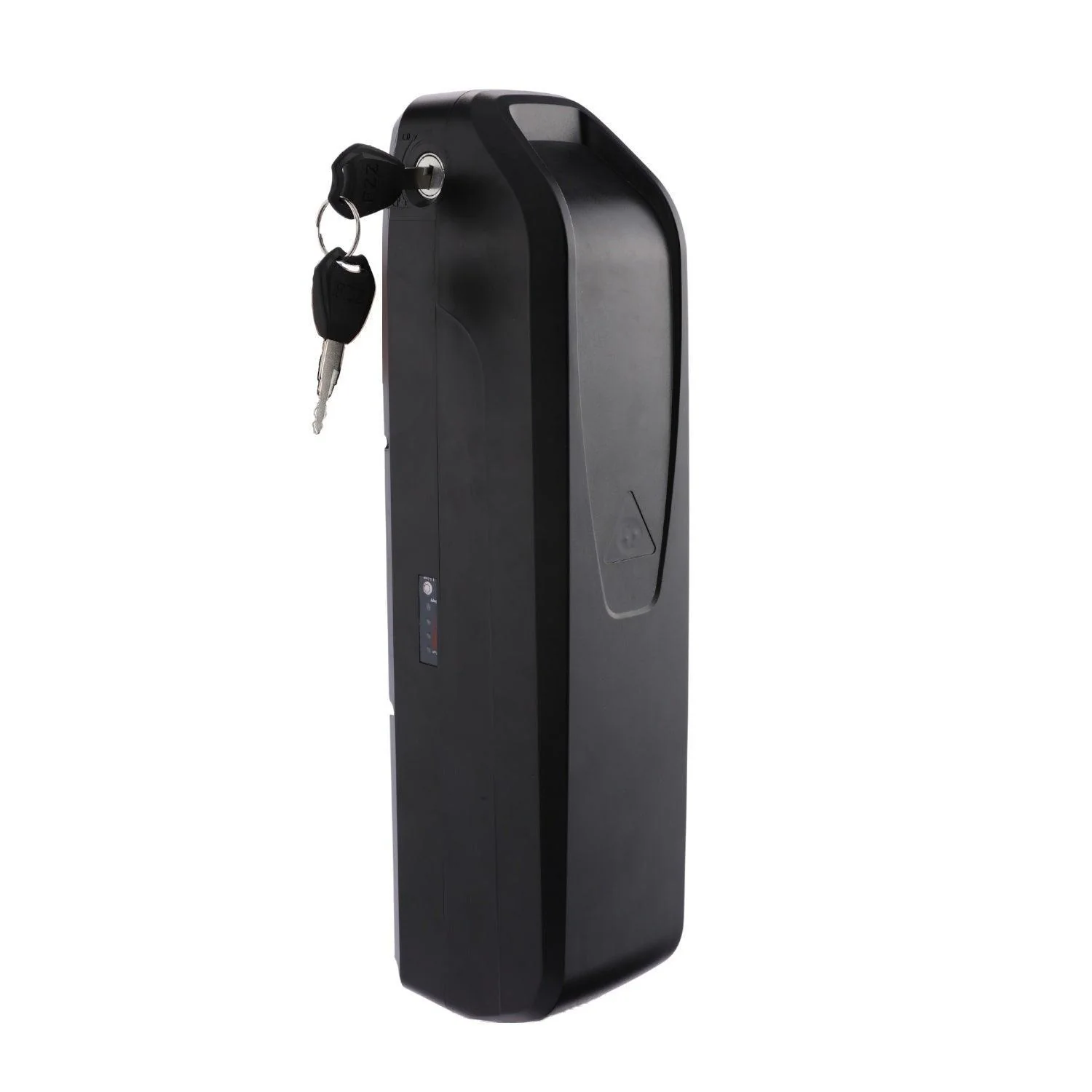

- 2 x Battery Keys
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item.We guarantee the style is the same as shown in the pictures. Thank you.
Precautions
1.It is recommended to charge up the battery to 80% if you are going to store it for a period;
2.make sure the battery will be charged at least once every 3 months to ensure the best performance and cycle life
3.The battery should be stored in a dry environment, keep away from fire and heat source;
4.Avoid direct connection of positive and negative poles
5.Can not be modified.
Safety Tips for E-bike Batteries
- Use only the manufacturer-supplied charger
- Never leave a battery charging unattended. Day or night.
- Don’t overcharge batteries. It takes6-8 hoursto charge the battery for the first time, and it will be fully charged in about5 hours.
- Don’t charge batteries near combustible or explosive materials.
- Don’t charge a battery in a confined space like a motorhome, RV, boat, automobile, van or shed.
- Never charge a battery that has been dropped, damaged or dinged.
- Don’t modify your e-bike’s drive system if you’re not an expert.
- Don't charge a battery in confined hot spaces (Although you can get battery charging boxes which are obviously confined these should still be stored somewhere cool).
- Install a smoke detector over your charging area.
- Use water and an A B C fire extinguisher (the most common type) to put out a lithium-ion battery fire.
